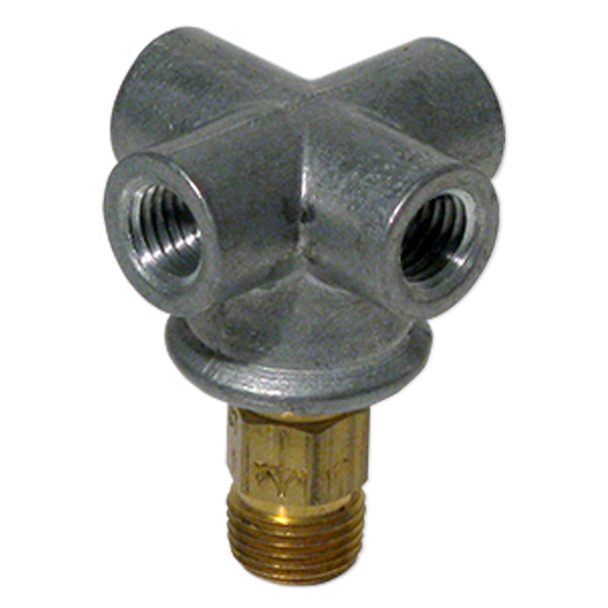

Bijur Delimon – Meter Unit FTH-3/0: Extra Slow Flow, Tee Type H
L. Dewitt's SKU #: B6554 | Mfr Part #: B6554The Bijur Delimon B6554 Meter Unit (Type FTH-3/0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTH is a heavy-duty tee-type unit with a 3/4" O.D. body, providing the fourth distinct port orientation in the FT family for maximum installation flexibility. It delivers "Extra Slow" metered oil per cycle.
Regulated Extra Slow Flow
As a FTH-3/0 model, this unit delivers the Extra Slow flow rate — the lowest standard output in the Bijur SLR system. It is engineered for the smallest precision bearings, instrument slides, and lubrication points where even a trace amount of oil is sufficient to maintain a protective film. Use the 3/0 designation where even the standard 00-rate would over-lubricate the point, risking contamination or floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTH-3/0 (Tee Type H) |
| Flow Rate | Extra Slow |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. heavy-duty body — fourth port-angle variation in the FT family
- 1/8 pipe thread outlet to bearing
- Maximum installation flexibility when FTA/FTB/FTG won't fit
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Heavy industrial machinery and presses
- Large CNC machining centers with unique port requirements
- High-demand cyclic lubrication applications
- Systems originally specified with FTH units
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B6554 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Extra Slow |
