Description

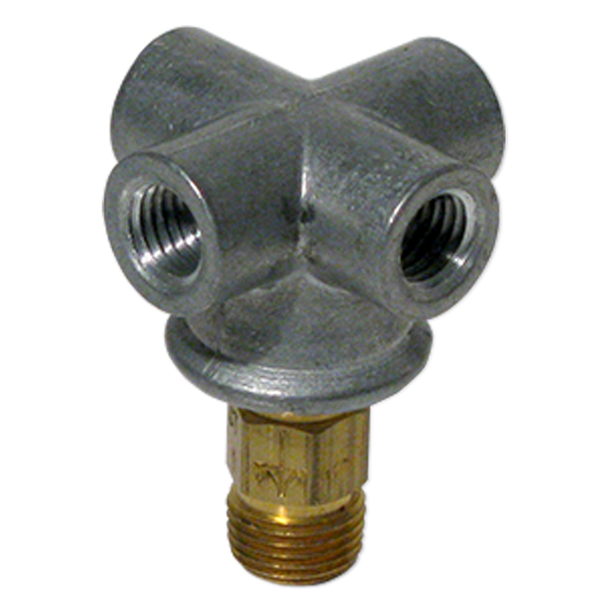

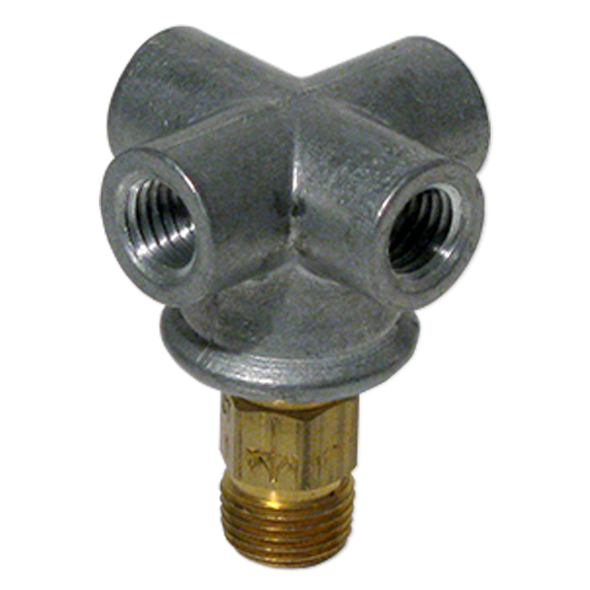

Bijur Delimon – Meter Unit FTH-0: Medium Slow Flow, Tee Type H
L. Dewitt's SKU #: B2770 | Mfr Part #: B2770The Bijur Delimon B2770 Meter Unit (Type FTH-0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTH is a heavy-duty tee-type unit with a 3/4" O.D. body, providing the fourth distinct port orientation in the FT family for maximum installation flexibility. It delivers "Medium Slow" metered oil per cycle.
Regulated Medium Slow Flow
As a FTH-0 model, this unit delivers Medium Slow flow — one of the most widely specified rates in standard machine tool lubrication. Suitable for a broad range of small-to-medium bearings where a light, consistent protective film is needed each cycle without excessive oil consumption or messy floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTH-0 (Tee Type H) |
| Flow Rate | Medium Slow |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. heavy-duty body — fourth port-angle variation in the FT family
- 1/8 pipe thread outlet to bearing
- Maximum installation flexibility when FTA/FTB/FTG won't fit
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Heavy industrial machinery and presses
- Large CNC machining centers with unique port requirements
- High-demand cyclic lubrication applications
- Systems originally specified with FTH units
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B2770 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Medium Slow |
