Description

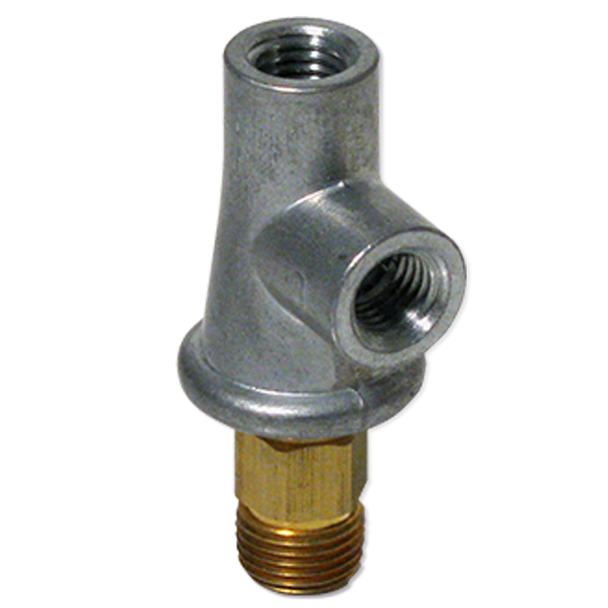

Bijur Delimon – Meter Unit FTC-3/0: Extra Slow Flow, Tee Type C
L. Dewitt's SKU #: B6551 | Mfr Part #: B6551The Bijur Delimon B6551 Meter Unit (Type FTC-3/0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTC is a compact tee-type unit with a 15/32" O.D. body, offering a smaller footprint than the FTA/FTB for space-constrained installations. It delivers "Extra Slow" metered oil to the bearing point.
Regulated Extra Slow Flow
As a FTC-3/0 model, this unit delivers the Extra Slow flow rate — the lowest standard output in the Bijur SLR system. It is engineered for the smallest precision bearings, instrument slides, and lubrication points where even a trace amount of oil is sufficient to maintain a protective film. Use the 3/0 designation where even the standard 00-rate would over-lubricate the point, risking contamination or floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTC-3/0 (Tee Type C) |
| Flow Rate | Extra Slow |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 15/32" |
| Material | Brass |
Key Features
- Compact 15/32" O.D. body — fits where FTA/FTB will not
- 1/8 pipe thread outlet to bearing
- Inline tee taps into lubrication supply line
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Compact and light-duty machine tools
- Space-constrained bearing locations
- Installations where FTA body size is too large
- Small CNC machines and precision equipment
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B6551 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Extra Slow |
