Description
Bijur Delimon – Meter Unit FTL-5: Extra, Extra Fast Flow, Tee Type L

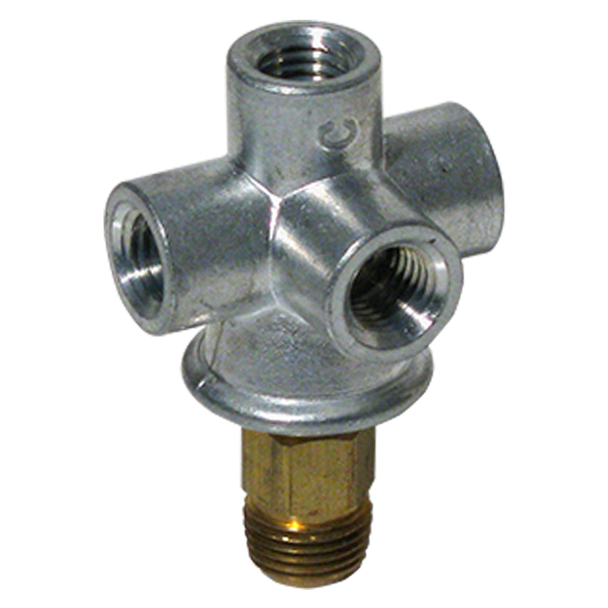

L. Dewitt's SKU #: B4374 | Mfr Part #: B4374The Bijur Delimon B4374 Meter Unit (Type FTL-5) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTL is a tee-type unit with a 3/4" O.D. body in aluminum construction, providing the same metering capability as the brass FTA in a lighter-weight package. It delivers "Extra, Extra Fast" metered oil per cycle.
Regulated Extra, Extra Fast Flow
As a FTL-5 model, this unit delivers the Extra, Extra Fast flow rate — the maximum standard output available. Reserved for the most demanding bearing points: heavily loaded, large-diameter bearings and high-speed shafts where the highest possible lubrication volume is critical to preventing premature failure.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTL-5 (Tee Type L) |
| Flow Rate | Extra, Extra Fast |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Aluminum body, Brass internals |
Key Features
- Aluminum body — reduces system weight vs. brass FTA
- 3/4" O.D. body — same footprint as FTA
- 1/8 pipe thread outlet to bearing
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Weight-sensitive machine installations
- Machines originally equipped with aluminum tee meter units
- Applications where reducing system weight is a design requirement
- Light-duty industrial equipment with aluminum housings
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B4374 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Extra Extra Fast |
