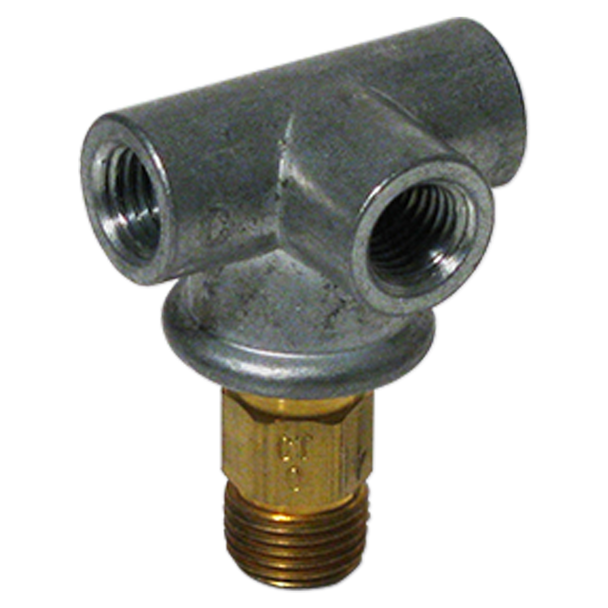

Bijur Delimon – Meter Unit FTG-5: Extra, Extra Fast Flow, Tee Type G
L. Dewitt's SKU #: B2765 | Mfr Part #: B2765The Bijur Delimon B2765 Meter Unit (Type FTG-5) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTG is a heavy-duty tee-type unit with a 3/4" O.D. body and an alternate port geometry from the FTA and FTB, providing another installation orientation option. It delivers "Extra, Extra Fast" metered oil per cycle.
Regulated Extra, Extra Fast Flow
As a FTG-5 model, this unit delivers the Extra, Extra Fast flow rate — the maximum standard output available. Reserved for the most demanding bearing points: heavily loaded, large-diameter bearings and high-speed shafts where the highest possible lubrication volume is critical to preventing premature failure.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTG-5 (Tee Type G) |
| Flow Rate | Extra, Extra Fast |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. heavy-duty body — third port-angle variation in the FT family
- 1/8 pipe thread outlet to bearing
- Use where FTA and FTB port angles are not suitable
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Machine tools requiring specific FTG port geometry
- Heavy industrial equipment with constrained mounting
- High-vibration applications needing robust tee body
- Bijur systems originally specified with FTG units
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B2765 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Extra Extra Fast |
