Description

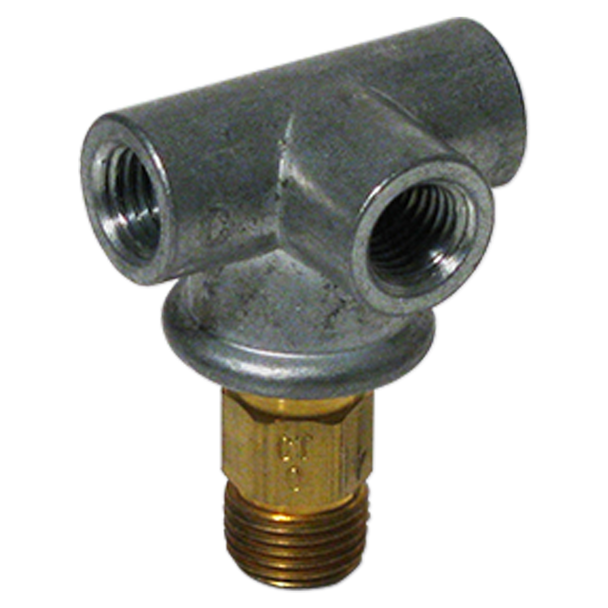

Bijur Delimon – Meter Unit FTG-3: Fast Flow, Tee Type G
L. Dewitt's SKU #: B2763 | Mfr Part #: B2763The Bijur Delimon B2763 Meter Unit (Type FTG-3) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTG is a heavy-duty tee-type unit with a 3/4" O.D. body and an alternate port geometry from the FTA and FTB, providing another installation orientation option. It delivers "Fast" metered oil per cycle.
Regulated Fast Flow
As a FTG-3 model, this unit delivers Fast flow, engineered for high-demand bearing points such as large roller bearings, heavily loaded ball screws, and high-speed spindles running under continuous loads. This rate ensures a full protective film is maintained even in the most demanding machining environments.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTG-3 (Tee Type G) |
| Flow Rate | Fast |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. heavy-duty body — third port-angle variation in the FT family
- 1/8 pipe thread outlet to bearing
- Use where FTA and FTB port angles are not suitable
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Machine tools requiring specific FTG port geometry
- Heavy industrial equipment with constrained mounting
- High-vibration applications needing robust tee body
- Bijur systems originally specified with FTG units
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B2763 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Fast |
