Bijur Delimon – Meter Unit FKA-3: Fast Flow, Insert Type A

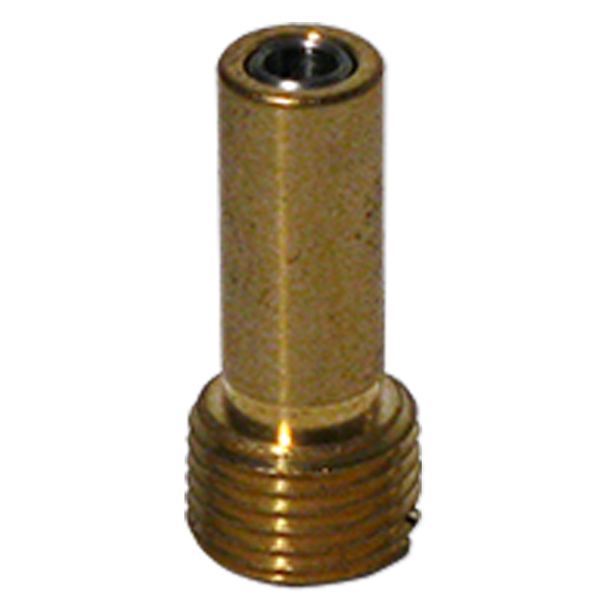

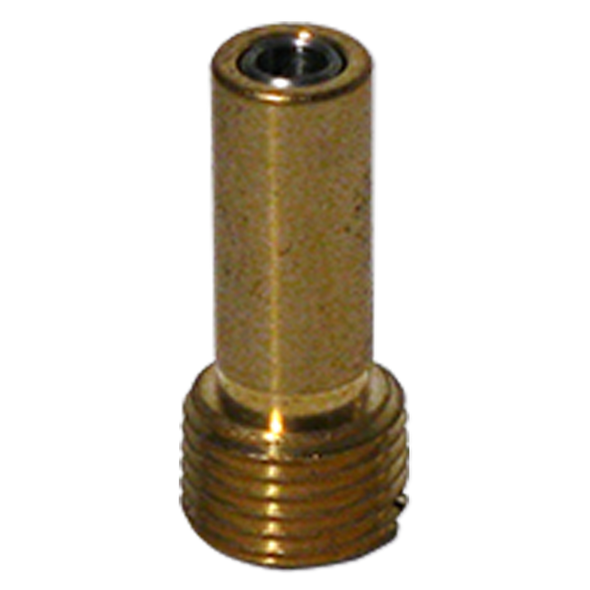

L. Dewitt's SKU #: B3917 | Mfr Part #: B3917The Bijur Delimon B3917 Meter Unit (Type FKA-3) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FKA is an insert-type unit designed to thread into a tapped hole that mates with a drilled internal oil passage, eliminating external inlet tubing entirely. It delivers "Fast" metered oil via its 1/8 NPT outlet to the bearing.
Regulated Fast Flow
As a FKA-3 model, this unit delivers Fast flow, engineered for high-demand bearing points such as large roller bearings, heavily loaded ball screws, and high-speed spindles running under continuous loads. This rate ensures a full protective film is maintained even in the most demanding machining environments.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents the internal passage from draining between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FKA-3 (Insert Type A) |
| Flow Rate | Fast |
| Inlet | Smooth shank (seals into drilled machine passage) |
| Outlet Thread | 1/8 NPT Male |
| Body Diameter | 9/32" |
| Overall Length | 29/32" |
| Material | Brass |
Key Features
- Insert-type inlet seals into drilled internal oil passage — no inlet tubing needed
- 1/8 NPT outlet to bearing point or fitting
- Integrated 5 lb check valve prevents back-drainage
- Compact 9/32" diameter body for tight bores
Common Applications
- Machine tools with cast-in or drilled internal oil galleries
- CNC spindle housings with internal lubrication passages
- Precision grinder heads with drilled oil channels
- Any application where external inlet tubing is impractical
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B3917 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Insert Type |
Flow Rate: |
Fast |
