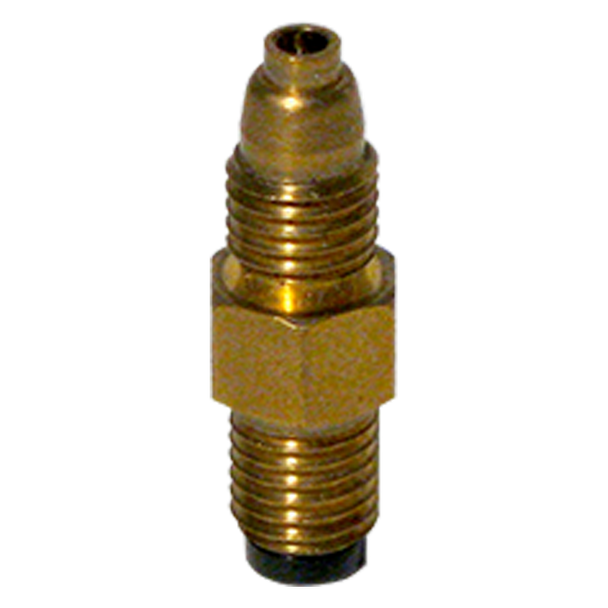

Bijur Delimon – Control Unit CJC-1: Medium Fast Flow, Junction Type C
L. Dewitt's SKU #: B7153 | Mfr Part #: B7153The Bijur Delimon B7153 Control Unit (Type CJC-1) is an oil proportioning device for continuous-flow lubrication systems. The CJC is a junction-type control unit with a smaller 3/32" tail tube connection at the outlet, for installations requiring tighter tubing routing from the junction to the bearing. It is calibrated to the "Medium Fast" output rate.
Calibrated Medium Fast Output
As a CJC-1 unit, this control unit delivers Medium Fast output, suited for more heavily used bearing points in continuous-flow systems. Specified where a light-to-moderate supply is insufficient and a more generous steady flow is needed to maintain film integrity under load.
Continuous System Design
For continuous-flow lubrication systems only. CJC control units contain no check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CJC-1 (Junction Type C) |
| Output Rate | Medium Fast |
| Type | Control Unit — Continuous Flow |
| Outlet Tubing | 3/32" O.D. tail tube |
| Material | Brass |
Key Features
- Junction-type for continuous-system headers
- 3/32" outlet tube for tight routing to bearing
- Precision orifice calibrated to designated output rate
- Brass construction, flow designation stamped on body
Common Applications
- High-density continuous lubrication circuits
- Installations with restricted tail tube routing
- Continuous-duty machines with tight clearances at bearing
- Systems requiring 3/32" tubing at junction outlet
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B7153 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Medium Fast |
