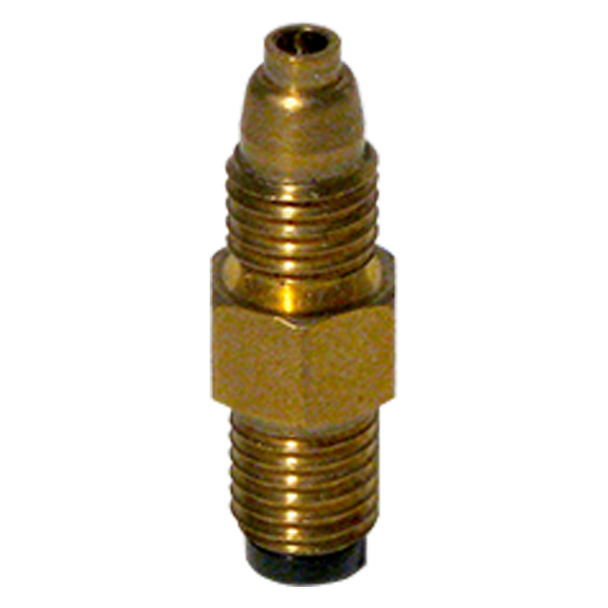

Bijur Delimon – Control Unit CJC-0: Medium Flow, Junction Type C
L. Dewitt's SKU #: B7152 | Mfr Part #: B7152The Bijur Delimon B7152 Control Unit (Type CJC-0) is an oil proportioning device for continuous-flow lubrication systems. The CJC is a junction-type control unit with a smaller 3/32" tail tube connection at the outlet, for installations requiring tighter tubing routing from the junction to the bearing. It is calibrated to the "Medium" output rate.
Calibrated Medium Output
As a CJC-0 unit, this control unit delivers Medium output, appropriate for mid-range bearing points in continuous systems operating under moderate load and speed. The medium rate balances lubrication adequacy with oil economy across a well-designed multi-point continuous circuit.
Continuous System Design
For continuous-flow lubrication systems only. CJC control units contain no check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CJC-0 (Junction Type C) |
| Output Rate | Medium |
| Type | Control Unit — Continuous Flow |
| Outlet Tubing | 3/32" O.D. tail tube |
| Material | Brass |
Key Features
- Junction-type for continuous-system headers
- 3/32" outlet tube for tight routing to bearing
- Precision orifice calibrated to designated output rate
- Brass construction, flow designation stamped on body
Common Applications
- High-density continuous lubrication circuits
- Installations with restricted tail tube routing
- Continuous-duty machines with tight clearances at bearing
- Systems requiring 3/32" tubing at junction outlet
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B7152 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Medium |
