Bijur Delimon – Control Unit CJC-3/0: Slow Flow, Junction Type C

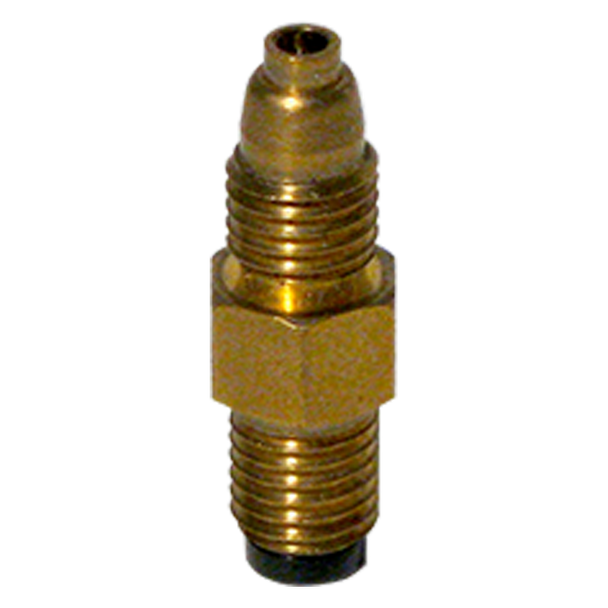

L. Dewitt's SKU #: B7150 | Mfr Part #: B7150The Bijur Delimon B7150 Control Unit (Type CJC-3/0) is an oil proportioning device for continuous-flow lubrication systems. The CJC is a junction-type control unit with a smaller 3/32" tail tube connection at the outlet, for installations requiring tighter tubing routing from the junction to the bearing. It is calibrated to the "Slow" output rate.
Calibrated Slow Output
As a CJC-3/0 unit, this control unit delivers Slow output, suitable for small bearings and precision slides in continuous systems that require a light but steady oil supply. The 3/0 rate is ideal for fine-tuning lower-demand points within a balanced continuous-flow lubrication circuit.
Continuous System Design
For continuous-flow lubrication systems only. CJC control units contain no check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CJC-3/0 (Junction Type C) |
| Output Rate | Slow |
| Type | Control Unit — Continuous Flow |
| Outlet Tubing | 3/32" O.D. tail tube |
| Material | Brass |
Key Features
- Junction-type for continuous-system headers
- 3/32" outlet tube for tight routing to bearing
- Precision orifice calibrated to designated output rate
- Brass construction, flow designation stamped on body
Common Applications
- High-density continuous lubrication circuits
- Installations with restricted tail tube routing
- Continuous-duty machines with tight clearances at bearing
- Systems requiring 3/32" tubing at junction outlet
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B7150 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Slow |
