Description
Bijur Delimon – Control Unit CJC-5: Extra, Extra Fast (Max) Flow, Junction Type C

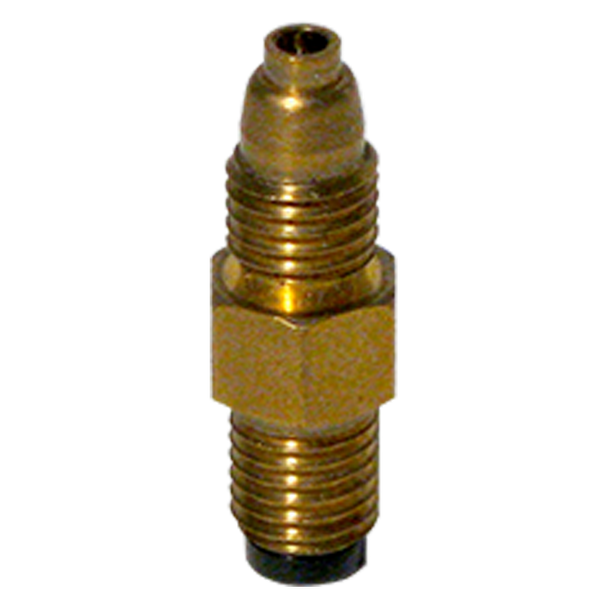

L. Dewitt's SKU #: B6933 | Mfr Part #: B6933The Bijur Delimon B6933 Control Unit (Type CJC-5) is an oil proportioning device for continuous-flow lubrication systems. The CJC is a junction-type control unit with a smaller 3/32" tail tube connection at the outlet, for installations requiring tighter tubing routing from the junction to the bearing. It is calibrated to the "Extra, Extra Fast (Max)" output rate.
Calibrated Maximum Output
As a CJC-5 unit, this control unit delivers the maximum output in the C-series range. It is reserved for the most demanding bearing points in continuous-flow lubrication systems — large, heavily loaded bearings and high-speed shafts where the highest available steady oil supply is essential to system reliability.
Continuous System Design
For continuous-flow lubrication systems only. CJC control units contain no check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CJC-5 (Junction Type C) |
| Output Rate | Extra, Extra Fast (Max) |
| Type | Control Unit — Continuous Flow |
| Outlet Tubing | 3/32" O.D. tail tube |
| Material | Brass |
Key Features
- Junction-type for continuous-system headers
- 3/32" outlet tube for tight routing to bearing
- Precision orifice calibrated to designated output rate
- Brass construction, flow designation stamped on body
Common Applications
- High-density continuous lubrication circuits
- Installations with restricted tail tube routing
- Continuous-duty machines with tight clearances at bearing
- Systems requiring 3/32" tubing at junction outlet
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B6933 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Extra, Extra Fast |
