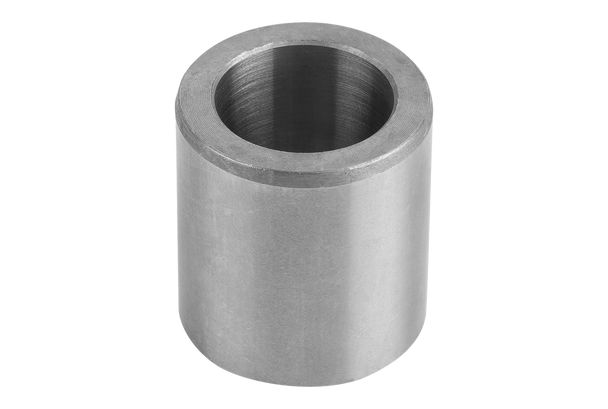

Kipp K1021.B0470X12 Drill Bushing, Cylindrical, DIN 179 Style B, 4.7mm ID, 8mm OD, 12mm Length, medium Type, Hardened Steel
L. Dewitt's SKU #: K1021.B0470X12 | Mfr Part #: K1021.B0470X12The Kipp K1021.B0470X12 is a precision cylindrical drill bushing manufactured to DIN 179 standards. Designed for accurate drill guidance in jigs and fixtures, it helps keep drills running straight and improves repeatability in production hole-making operations.
Precision Drill Guidance
As a DIN 179 Style B bushing, this component has the hole rounded on both ends to support controlled drill entry and stable guidance through the fixture plate. The cylindrical body is ideal where a flangeless bushing profile is preferred.
Hardened Ground Steel
Manufactured from special low carbon steel, hardened to 740 ±80 HV 10, and ground for dimensional consistency. From D1 over 15 mm, the datasheet notes size increments increase by 0.5 mm.
Technical Specifications
| Part Number | K1021.B0470X12 |
| SKU | K1021.B0470X12 |
| Standard | DIN 179 |
| Style | B |
| Internal Diameter (D1) | 4.7 mm |
| Outside Diameter (D2) | 8 mm |
| Length (L1) | 12 mm |
| Product Type | medium |
| Radius (R) | 1 mm |
| Tolerance (T) | 0.01 mm |
| Material | Special low carbon steel |
| Hardness | 740 +/-80 HV 10 |
| Finish | Ground |
| EAN / GTIN | 4059245448623 |
Key Features
- Cylindrical DIN 179 Design: Flangeless profile for precision drill guidance in fixture plates.
- Style B Geometry: hole rounded on both ends for application-specific drill entry.
- Ground Surfaces: Precision ground construction supports accurate fit and repeatable guidance.
- Wear Resistant: Hardened steel body is suited for repeated production drilling.
Primary Applications
- Drill jigs and fixture plates
- Production drilling stations
- Repeat-hole guidance in metalworking
- Assembly tooling and workholding systems
Technical Support & Sizing Help
Need another bore size, body length, or DIN drill bushing style? L. Dewitt McCarter, Inc. can help match the right Kipp drill bushing to your fixture and tooling requirements.
Contact Our SpecialistsAdditional Information
