Bijur Delimon – Meter Unit FKD-0: Medium Slow Flow, Insert Type D (British Standard)

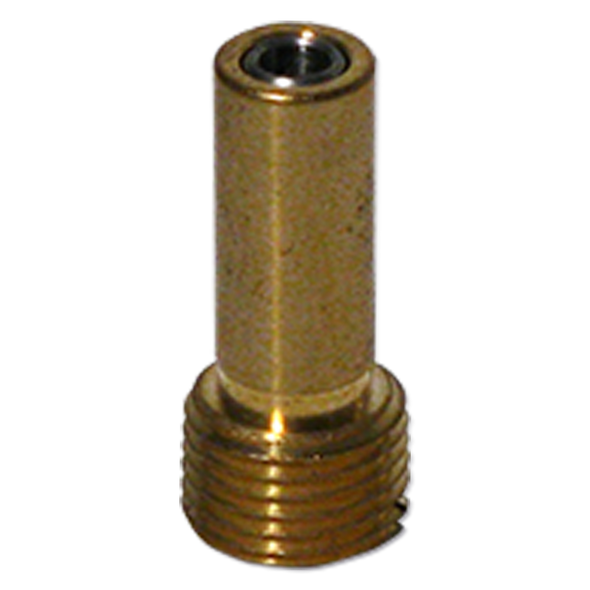

L. Dewitt's SKU #: B8871 | Mfr Part #: B8871The Bijur Delimon B8871 Meter Unit (Type FKD-0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FKD is the 1/8 BSPT equivalent of the FKA — an insert-type unit designed for machines with British Standard Pipe bearing ports. Like the FKA, the inlet shank inserts into a drilled machine passage while the 1/8 BSPT outlet connects to the bearing. It delivers "Medium Slow" metered oil per cycle.
Regulated Medium Slow Flow
As a FKD-0 model, this unit delivers Medium Slow flow — one of the most widely specified rates in standard machine tool lubrication. Suitable for a broad range of small-to-medium bearings where a light, consistent protective film is needed each cycle without excessive oil consumption or messy floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents internal passage drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FKD-0 (Insert Type D — British Standard) |
| Flow Rate | Medium Slow |
| Inlet | Smooth shank (seals into drilled machine passage) |
| Outlet Thread | 1/8 BSPT Male (British Standard Pipe) |
| Body Diameter | 9/32" |
| Overall Length | 29/32" |
| Material | Brass |
Key Features
- 1/8 BSPT outlet — British Standard Pipe for UK/import machinery
- Insert-type inlet seals into drilled internal passage — no inlet tubing needed
- Integrated 5 lb check valve prevents back-drainage
- Same 9/32" diameter body as FKA — BSP equivalent
Common Applications
- British and Commonwealth machine tools with BSPT internal oil passages
- Import machinery requiring BSP bearing port connections
- Mixed-standard systems needing BSPT at the bearing end
- Applications where FKA body fits but NPT outlet is incorrect
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B8871 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Insert Type |
Flow Rate: |
Medium Slow |
