Bijur Delimon – Meter Unit FKD-00: Slow Flow, Insert Type D (British Standard)

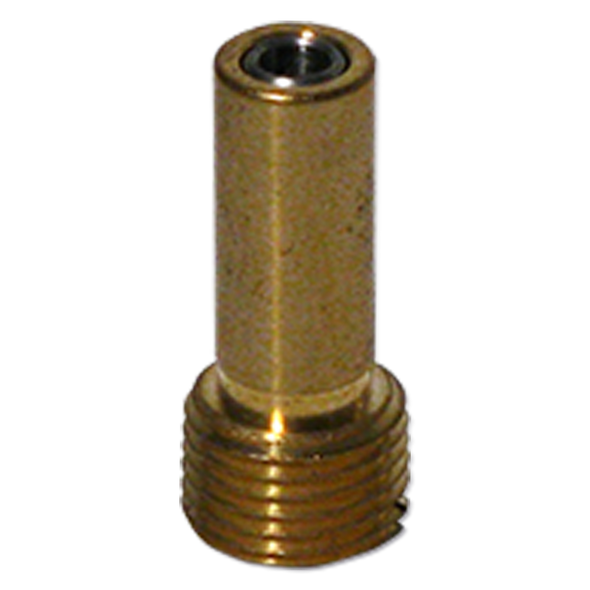

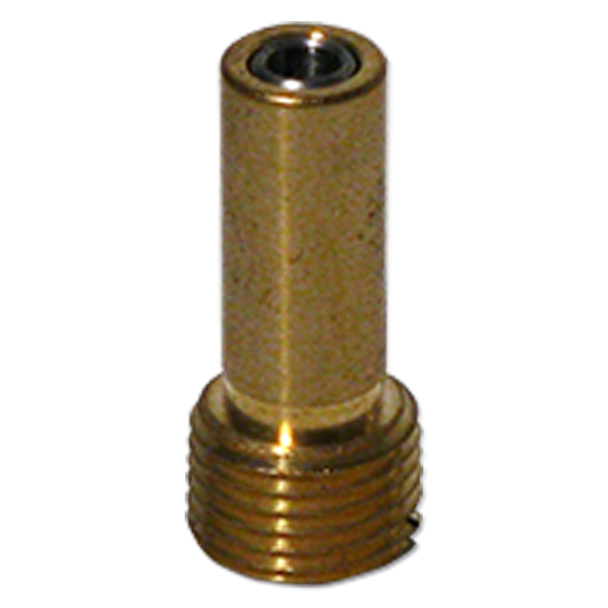

L. Dewitt's SKU #: B8870 | Mfr Part #: B8870The Bijur Delimon B8870 Meter Unit (Type FKD-00) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FKD is the 1/8 BSPT equivalent of the FKA — an insert-type unit designed for machines with British Standard Pipe bearing ports. Like the FKA, the inlet shank inserts into a drilled machine passage while the 1/8 BSPT outlet connects to the bearing. It delivers "Slow" metered oil per cycle.
Regulated Slow Flow
As a FKD-00 model, this unit delivers Slow flow, the next step above Extra Slow. It is ideal for smaller bearings and precision slides where only a minimal but consistent oil film is required each cycle. Because each incremental increase in Bijur meter unit size approximately doubles the output, the 00-size is frequently used to fine-tune lower-demand points in a balanced multi-point system.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents internal passage drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FKD-00 (Insert Type D — British Standard) |
| Flow Rate | Slow |
| Inlet | Smooth shank (seals into drilled machine passage) |
| Outlet Thread | 1/8 BSPT Male (British Standard Pipe) |
| Body Diameter | 9/32" |
| Overall Length | 29/32" |
| Material | Brass |
Key Features
- 1/8 BSPT outlet — British Standard Pipe for UK/import machinery
- Insert-type inlet seals into drilled internal passage — no inlet tubing needed
- Integrated 5 lb check valve prevents back-drainage
- Same 9/32" diameter body as FKA — BSP equivalent
Common Applications
- British and Commonwealth machine tools with BSPT internal oil passages
- Import machinery requiring BSP bearing port connections
- Mixed-standard systems needing BSPT at the bearing end
- Applications where FKA body fits but NPT outlet is incorrect
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B8870 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Insert Type |
Flow Rate: |
Slow |
