Bijur Delimon – Meter Unit FB-0: Medium Slow Flow, British Thread Tee Type

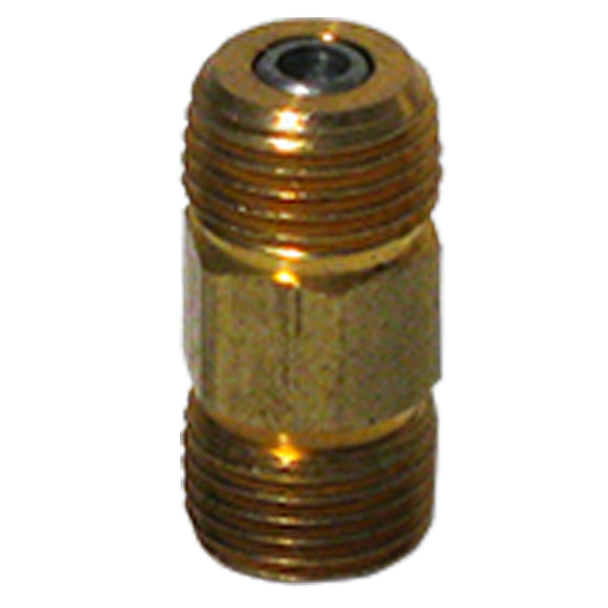

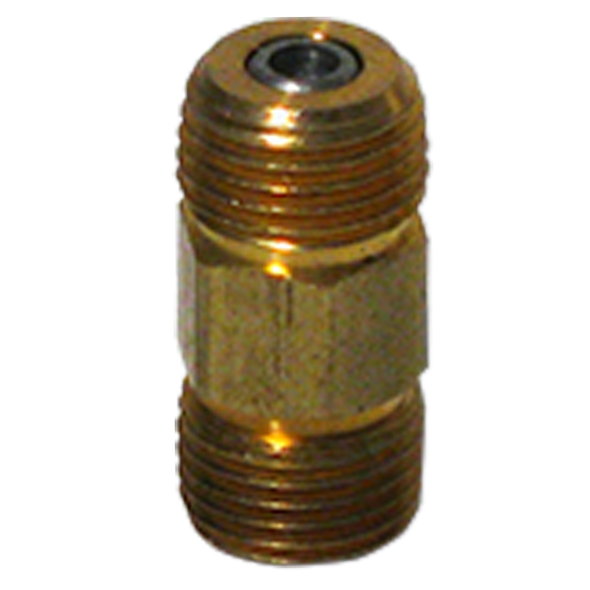

L. Dewitt's SKU #: B8452 | Mfr Part #: B8452The Bijur Delimon B8452 Meter Unit (Type FB-0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FB type features a 1/8 NPT inlet and a 1/8 BSPT outlet, making it the go-to tee-type unit for systems that mix American NPT supply lines with British Standard Pipe bearing connections. It delivers "Medium Slow" metered oil to the bearing point.
Regulated Medium Slow Flow
As a FB-0 model, this unit delivers Medium Slow flow — one of the most widely specified rates in standard machine tool lubrication. Suitable for a broad range of small-to-medium bearings where a light, consistent protective film is needed each cycle without excessive oil consumption or messy floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow (direction indicated by arrow on body) and prevents lines from draining during the pump's off cycle. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FB-0 (British Thread Tee Type) |
| Flow Rate | Medium Slow |
| Inlet Thread | 1/8 NPT Male |
| Outlet Thread | 1/8 BSPT Male |
| Hex Size | 7/16" |
| Material | Brass |
Key Features
- 1/8 NPT inlet — standard American pipe thread
- 1/8 BSPT outlet — British Standard Pipe for UK/import machinery
- Compatible with 2-way, 3-way, and 4-way junction headers
- Integrated 5 lb check valve prevents line drainage
Common Applications
- British and Commonwealth machine tools with BSPT bearing ports
- Mixed NPT/BSP lubrication systems
- Multi-point junction header installations
- Equipment requiring cross-standard thread compatibility
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Delimon Part Number: |
B8452 |
Thread Type: |
1/8 NPT |
Type, Location & Mating Parts: |
British Thread Tee Type |
Flow Rate: |
Medium Slow |
