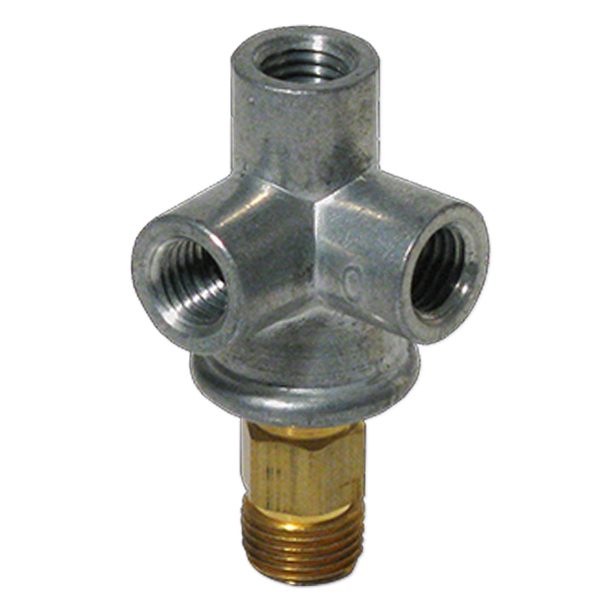

Bijur Delimon – Meter Unit FTK-0: Medium Slow Flow, Tee Type K
L. Dewitt's SKU #: B4129 | Mfr Part #: B4129The Bijur Delimon B4129 Meter Unit (Type FTK-0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTK is a mid-size tee-type unit with a 9/16" diameter body and an additional lubrication port, providing added flexibility in multi-point tee installations. It delivers "Medium Slow" metered oil per cycle.
Regulated Medium Slow Flow
As a FTK-0 model, this unit delivers Medium Slow flow — one of the most widely specified rates in standard machine tool lubrication. Suitable for a broad range of small-to-medium bearings where a light, consistent protective film is needed each cycle without excessive oil consumption or messy floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTK-0 (Tee Type K) |
| Flow Rate | Medium Slow |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body Diameter | 9/16" |
| Material | Brass |
Key Features
- 9/16" diameter body — compact with multi-port capability
- 1/8 pipe thread outlet to bearing
- Multi-directional port configuration
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Complex multi-point tee installations
- CNC machines with multiple bearing points per tee location
- Moderate-clearance machine tool installations
- Systems requiring a compact multi-port tee body
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B4129 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Medium Slow |
