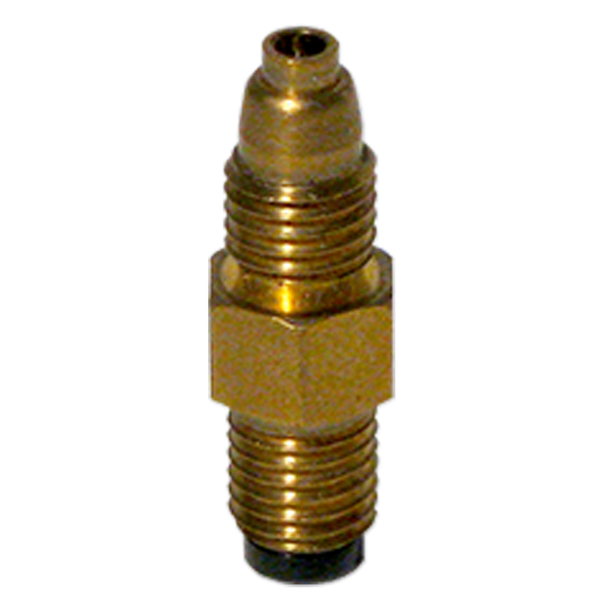

Bijur Delimon – Meter Unit FJC-1: Medium Flow, Junction Type C
L. Dewitt's SKU #: B3316 | Mfr Part #: B3316The Bijur Delimon B3316 Meter Unit (Type FJC-1) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FJC junction type is similar to the FJB but features a tubing connection insert at the outlet for a smaller 3/32" O.D. tail tube, ideal for high-density installations or restricted routing paths. It delivers "Medium" metered oil per cycle.
Regulated Medium Flow
As a FJC-1 model, this unit delivers Medium flow, appropriate for mid-size bearings operating under moderate load and speed. This rate delivers a balanced oil volume per cycle — enough to maintain a complete lubricant film without generating waste at lighter-duty bearing points elsewhere in the system.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents tail tube and line drainage during the pump's off cycle. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FJC-1 (Junction Type C) |
| Flow Rate | Medium |
| Inlet Thread | 5/16-24 NF Male (mates with standard junctions) |
| Outlet | 5/16-24 NF with 3/32" O.D. tube insert |
| Hex Size | 3/8" |
| Material | Brass |
Key Features
- 5/16-24 NF inlet mates with all standard junctions
- 3/32" O.D. tail tube insert at outlet for tight routing
- Integrated 5 lb check valve prevents back-drainage
- Compact 3/8" hex body for confined-space access
Common Applications
- High-density multi-point lubrication installations
- Precision lathes with restricted tubing clearances
- Small-frame CNC machines
- Installations requiring 3/32" tubing instead of standard 5/32"
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B3316 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Medium |
