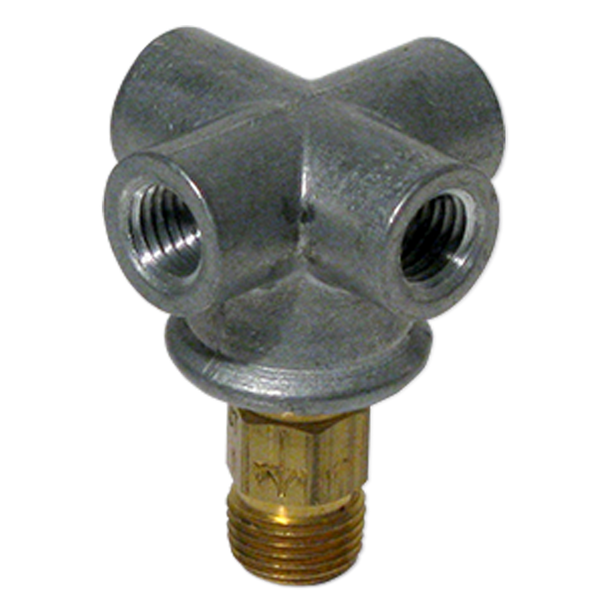

Bijur Delimon – Meter Unit FTH-2: Medium Fast Flow, Tee Type H
L. Dewitt's SKU #: B2772 | Mfr Part #: B2772The Bijur Delimon B2772 Meter Unit (Type FTH-2) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTH is a heavy-duty tee-type unit with a 3/4" O.D. body, providing the fourth distinct port orientation in the FT family for maximum installation flexibility. It delivers "Medium Fast" metered oil per cycle.
Regulated Medium Fast Flow
As a FTH-2 model, this unit delivers Medium Fast flow, designed for larger or more heavily loaded bearings that require a more generous oil supply per cycle. Typical candidates include loaded spindle bearings, large linear slides, and higher-speed shafts where under-lubrication leads to accelerated wear.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTH-2 (Tee Type H) |
| Flow Rate | Medium Fast |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. heavy-duty body — fourth port-angle variation in the FT family
- 1/8 pipe thread outlet to bearing
- Maximum installation flexibility when FTA/FTB/FTG won't fit
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Heavy industrial machinery and presses
- Large CNC machining centers with unique port requirements
- High-demand cyclic lubrication applications
- Systems originally specified with FTH units
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B2772 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Medium Fast |
