Bijur Delimon – Meter Unit FJB-2: Medium Fast Flow, Junction Type B

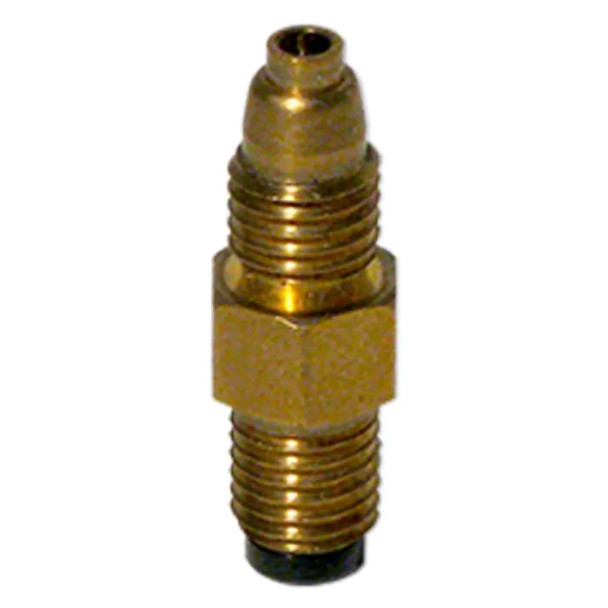

L. Dewitt's SKU #: B2497 | Mfr Part #: B2497The Bijur Delimon B2497 Meter Unit (Type FJB-2) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FJB is the most commonly used meter unit junction type — it threads into a standard Bijur junction or junction header and delivers "Medium Fast" metered oil via a 5/32" tail tube to the bearing point.
Regulated Medium Fast Flow
As a FJB-2 model, this unit delivers Medium Fast flow, designed for larger or more heavily loaded bearings that require a more generous oil supply per cycle. Typical candidates include loaded spindle bearings, large linear slides, and higher-speed shafts where under-lubrication leads to accelerated wear.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow (arrow stamped on 3/8" hex body) and prevents the tail tube and distribution lines from draining back during the pump's off cycle. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FJB-2 (Junction Type B) |
| Flow Rate | Medium Fast |
| Inlet Thread | 5/16-24 NF Male (mates with standard junctions) |
| Outlet Thread | 5/16-24 NF Male (for 5/32" O.D. tail tube) |
| Hex Size | 3/8" |
| Material | Brass |
Key Features
- 5/16-24 NF threads on both inlet and outlet
- Mates with all standard Bijur junctions and junction headers
- 5/32" O.D. tail tube connection at outlet
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- CNC Vertical Machining Centers
- Bridgeport-style Milling Machines
- Precision Grinders with standard Bijur junction blocks
- Any Bijur SLR system using standard junctions
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B2495 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Medium Fast |
