Description

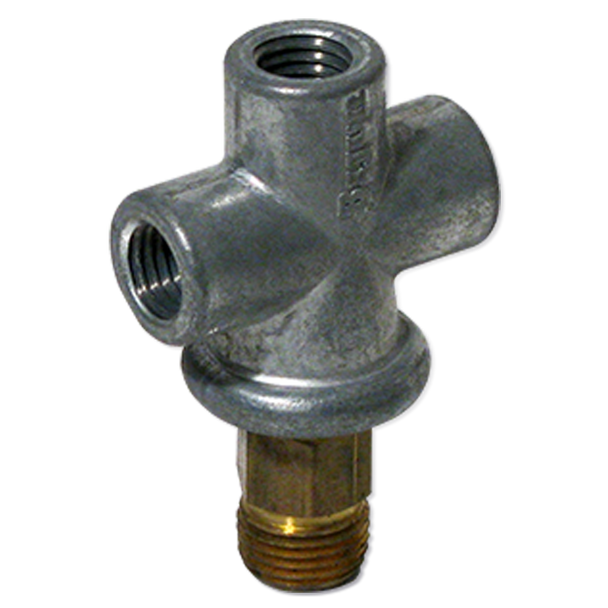

Bijur Delimon – Meter Unit FTB-00: Slow Flow, Tee Type B
L. Dewitt's SKU #: B1528 | Mfr Part #: B1528The Bijur Delimon B1528 Meter Unit (Type FTB-00) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTB is a tee-type unit with a 3/4" O.D. body and an alternate port orientation from the FTA, providing installation flexibility where the FTA mounting angle is restricted. It delivers "Slow" metered oil to the bearing.
Regulated Slow Flow
As a FTB-00 model, this unit delivers Slow flow, the next step above Extra Slow. It is ideal for smaller bearings and precision slides where only a minimal but consistent oil film is required each cycle. Because each incremental increase in Bijur meter unit size approximately doubles the output, the 00-size is frequently used to fine-tune lower-demand points in a balanced multi-point system.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage during the pump's off cycle. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTB-00 (Tee Type B) |
| Flow Rate | Slow |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. body — alternate port orientation to FTA
- 1/8 pipe thread outlet to bearing
- Use where FTA mounting angle is restricted
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Machine tools where FTA port orientation conflicts with layout
- Industrial presses with restricted access points
- CNC machines with unconventional bearing port locations
- Any installation requiring alternate tee body angle
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B1528 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Slow |
