Description
Bijur Delimon – Meter Unit FTD-5: Extra, Extra Fast Flow, Tee Type D

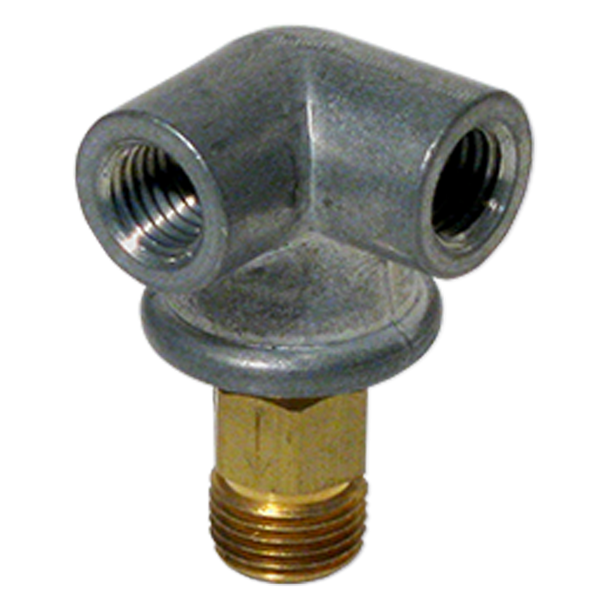

L. Dewitt's SKU #: B1111 | Mfr Part #: B1111The Bijur Delimon B1111 Meter Unit (Type FTD-5) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTD is a mid-size tee-type unit with a 9/16" O.D. body, bridging the gap between the compact FTC and the heavy-duty FTA/FTB. It delivers "Extra, Extra Fast" metered oil to the bearing.
Regulated Extra, Extra Fast Flow
As a FTD-5 model, this unit delivers the Extra, Extra Fast flow rate — the maximum standard output available. Reserved for the most demanding bearing points: heavily loaded, large-diameter bearings and high-speed shafts where the highest possible lubrication volume is critical to preventing premature failure.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTD-5 (Tee Type D) |
| Flow Rate | Extra, Extra Fast |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 9/16" |
| Material | Brass / Aluminum |
Key Features
- Mid-size 9/16" O.D. body — between compact FTC and heavy FTA
- 1/8 pipe thread outlet to bearing
- Inline tee taps into existing supply line
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- General-purpose machine tool lubrication
- CNC machines with moderate space at bearing location
- Industrial equipment requiring mid-size tee body
- Retrofit installations on a range of machine types
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B1111 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Extra Extra Fast |
