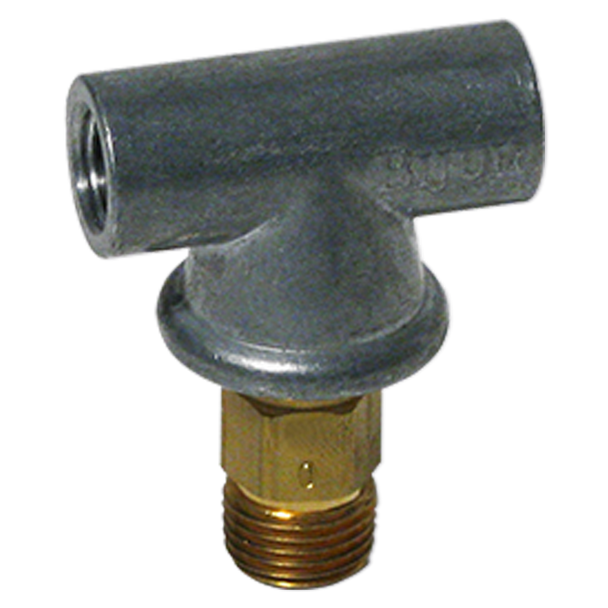

Bijur Delimon – Meter Unit FTA-2: Medium Fast Flow, Tee Type A
L. Dewitt's SKU #: B1073 | Mfr Part #: B1073The Bijur Delimon B1073 Meter Unit (Type FTA-2) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTA is a robust tee-type unit with a 3/4" O.D. body and a 1/8 pipe thread outlet, designed to provide a metered oil tap directly off an existing lubrication line. It delivers "Medium Fast" flow to the bearing point.
Regulated Medium Fast Flow
As a FTA-2 model, this unit delivers Medium Fast flow, designed for larger or more heavily loaded bearings that require a more generous oil supply per cycle. Typical candidates include loaded spindle bearings, large linear slides, and higher-speed shafts where under-lubrication leads to accelerated wear.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTA-2 (Tee Type A) |
| Flow Rate | Medium Fast |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 3/4" |
| Material | Brass |
Key Features
- 3/4" O.D. body — heavy-duty for high-vibration environments
- 1/8 pipe thread outlet to bearing
- Inline tee taps into existing lubrication line
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Heavy-duty machine tools and industrial presses
- Large CNC machining centers
- High-vibration industrial equipment
- Systems requiring a robust tee at the bearing
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B1073 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Medium Fast |
