Description
Bijur Delimon – Control Unit CJB-5: Extra, Extra Fast (Max) Flow, Junction Type B

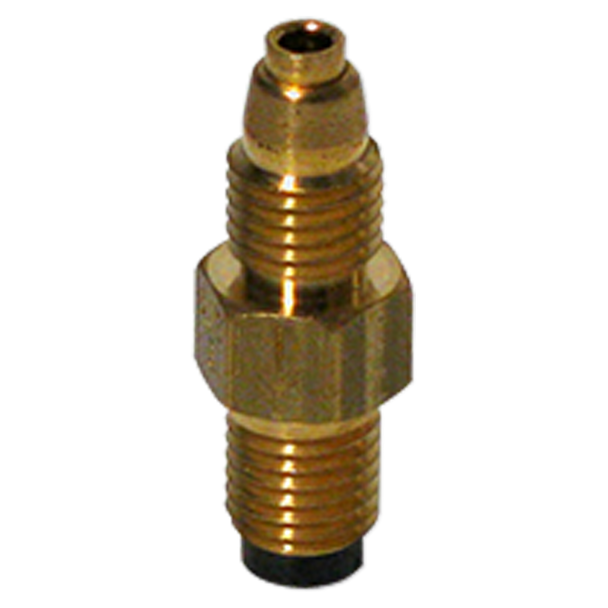

L. Dewitt's SKU #: B6820 | Mfr Part #: B6820The Bijur Delimon B6820 Control Unit (Type CJB-5) is an oil proportioning device for continuous-flow lubrication systems. The CJB threads into a junction or junction header in a continuous-duty circuit and calibrates to the "Extra, Extra Fast (Max)" output rate, ensuring each bearing point receives a steady, proportioned volume of oil as long as the system is running.
Calibrated Maximum Output
As a CJB-5 unit, this control unit delivers the maximum output in the C-series range. It is reserved for the most demanding bearing points in continuous-flow lubrication systems — large, heavily loaded bearings and high-speed shafts where the highest available steady oil supply is essential to system reliability.
Continuous System Design
For continuous-flow lubrication systems only. Unlike cyclic (SLR) meter units, CJB control units have no internal check valve and are designed for systems where the pump runs continuously. Do not use in cyclic (intermittent) pump systems — the absence of a check valve will result in line drainage and system failure.
Technical Specifications
| Type Designation | CJB-5 (Junction Type) |
| Output Rate | Extra, Extra Fast (Max) |
| Type | Control Unit — Continuous Flow |
| Mounting | Threaded into junction or junction header |
| Flow Direction | Arrow stamped on body |
| Material | Brass |
Key Features
- Junction-type mounting into continuous-system headers
- Precision internal orifice calibrated to designated output rate
- Stamped flow designation on hex body for identification
- Brass construction for corrosion resistance
Common Applications
- Continuous-duty industrial machinery
- Transfer lines requiring constant lubrication supply
- High-cycle automated equipment with continuous pumps
- Conveyor systems and indexing machinery
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B6820 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Extra Extra Fast |
