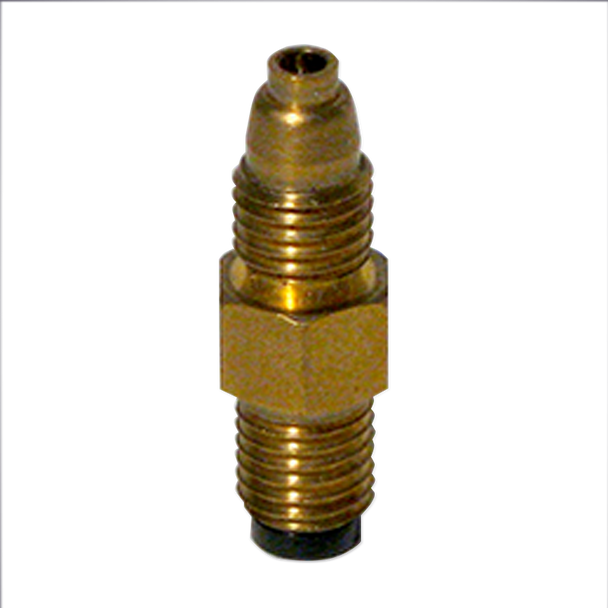

Bijur Delimon – Meter Unit AJB-5: Extra, Extra Fast Flow, Junction Type (Metric)
L. Dewitt's SKU #: 15323-5 | Mfr Part #: 15323-5The Bijur Delimon 15323-5 Meter Unit (Type AJB-5) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems on metric-specification machinery. The AJB threads into a metric junction or junction header — using the M8×1 seating configuration for an oil-tight connection — and delivers "Extra, Extra Fast" flow via a tail tube from its outlet to the bearing point.
Regulated Extra, Extra Fast Flow
As a AJB-5 model, this unit delivers the Extra, Extra Fast flow rate — the maximum standard output available. Reserved for the most demanding bearing points: heavily loaded, large-diameter bearings and high-speed shafts where the highest possible lubrication volume is critical to preventing premature failure.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow (arrow stamped on body) and prevents supply lines from draining during the pump's off cycle. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | AJB-5 (Junction Type, Metric) |
| Flow Rate | Extra, Extra Fast |
| Inlet | M8×1 (oil-tight seating at junction) |
| Outlet Thread | M8×1 Male (for 5/32" tail tube) |
| Hex Size | 10mm |
| Overall Length | 30.5mm |
| Material | Brass |
Key Features
- M8×1 seating inlet for oil-tight junction connection
- M8×1 outlet for 5/32" tail tube to bearing
- Integrated 5 lb check valve prevents back-drainage
- 10mm brass hex body — matches metric junction headers
Common Applications
- European CNC Machining Centers with metric junction blocks
- Import Precision Grinders using M8×1 junctions
- Metric-specification Automated Machinery
- Machine tools originally equipped with Bijur metric SLR systems
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Delimon Part Number: |
15323-5 |
Thread Type: |
Male |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Extra Extra Fast |
