Description

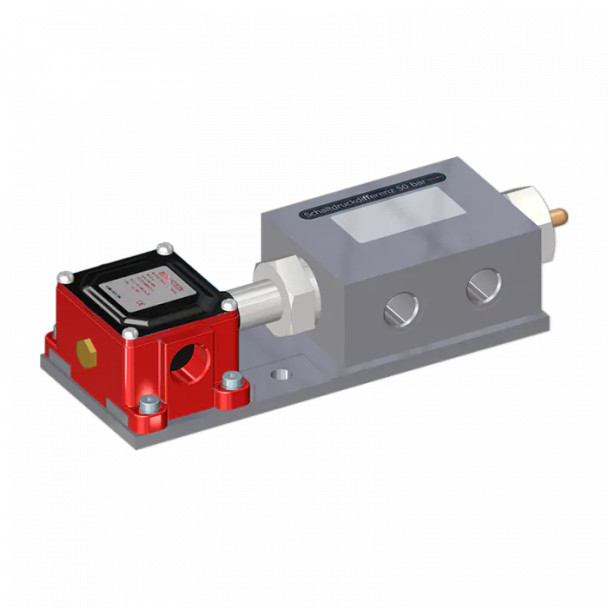

Bijur Delimon - SGA Differential Pressure Switch (SGA05A00)
L. Dewitt's SKU #: SGA05A00 | Mfr Part #: SGA05A00The Bijur Delimon SGA05A00 is a high-precision Differential Pressure Switch designed for monitoring End-of-Line (EOL) conditions in dual-line lubrication systems. This switching device ensures system integrity by detecting the pressure differential between the two main supply lines, signaling the controller to reverse the flow or confirming that the cycle has successfully reached the furthest point in the network.
Critical System Monitoring
In a dual-line system, the SGA05A00 acts as the "eyes" of the operation. It monitors the pressure buildup at the end of the lines to ensure every lubricant dispenser has fired. Once the preset differential of 425 PSI (30 bar) is met, the internal microswitch trips, providing an electrical signal to the system's reversal valve or PLC.
Rugged Construction
Built for harsh industrial environments, the switch features a zinc-plated steel body and high-quality internal seals. Its robust design minimizes the risk of false signals due to vibration or environmental contamination, ensuring reliable performance in steel mills, cement plants, and mining operations.
Technical Specifications
| Switching Pressure | 425 PSI (30 bar) Fixed |
| Max System Pressure | 5800 PSI (400 bar) |
| Electrical Contact | 1 x Microswitch (SPDT) |
| Inlet Connections | G1/4" BSPP |
| Enclosure Rating | IP65 |
| Material | Zinc-Plated Steel |
Key Features
- Dual-Line Compatibility: Specifically designed for systems using SG series distributors.
- Fixed Differential: Factory-set at 425 PSI for consistent, tamper-proof operation.
- Heavy-Duty Seal: Viton/NBR seals provide compatibility with standard greases and oils.
- Easy Integration: Standard DIN plug connection for fast electrical wiring.
Common Applications
- Dual-Line Grease Systems
- Heavy Industrial Machinery
- Automated Lubrication Networks
- Off-Road Mobile Equipment
