Description

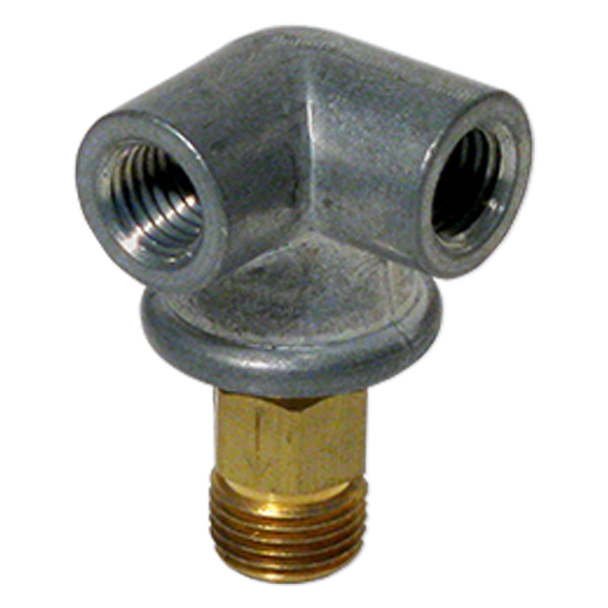

Bijur Delimon – Meter Unit FTD-0: Medium Slow Flow, Tee Type D
L. Dewitt's SKU #: B1106 | Mfr Part #: B1106The Bijur Delimon B1106 Meter Unit (Type FTD-0) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTD is a mid-size tee-type unit with a 9/16" O.D. body, bridging the gap between the compact FTC and the heavy-duty FTA/FTB. It delivers "Medium Slow" metered oil to the bearing.
Regulated Medium Slow Flow
As a FTD-0 model, this unit delivers Medium Slow flow — one of the most widely specified rates in standard machine tool lubrication. Suitable for a broad range of small-to-medium bearings where a light, consistent protective film is needed each cycle without excessive oil consumption or messy floor drip.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTD-0 (Tee Type D) |
| Flow Rate | Medium Slow |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 9/16" |
| Material | Brass / Aluminum |
Key Features
- Mid-size 9/16" O.D. body — between compact FTC and heavy FTA
- 1/8 pipe thread outlet to bearing
- Inline tee taps into existing supply line
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- General-purpose machine tool lubrication
- CNC machines with moderate space at bearing location
- Industrial equipment requiring mid-size tee body
- Retrofit installations on a range of machine types
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B1106 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Medium Slow |
