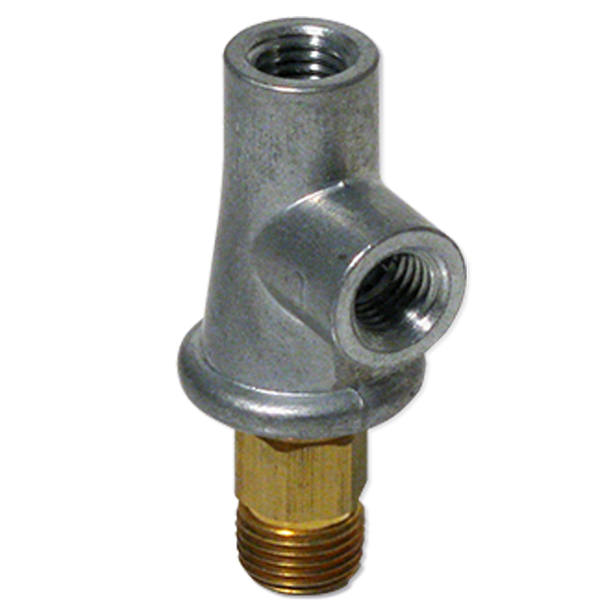

Bijur Delimon – Meter Unit FTC-1: Medium Flow, Tee Type C
L. Dewitt's SKU #: B1099 | Mfr Part #: B1099The Bijur Delimon B1099 Meter Unit (Type FTC-1) is a precision oil proportioning device for Single Line Resistance (SLR) cyclic lubrication systems. The FTC is a compact tee-type unit with a 15/32" O.D. body, offering a smaller footprint than the FTA/FTB for space-constrained installations. It delivers "Medium" metered oil to the bearing point.
Regulated Medium Flow
As a FTC-1 model, this unit delivers Medium flow, appropriate for mid-size bearings operating under moderate load and speed. This rate delivers a balanced oil volume per cycle — enough to maintain a complete lubricant film without generating waste at lighter-duty bearing points elsewhere in the system.
Cyclic System Integrity
An integrated 5 lb check valve ensures one-directional oil flow and prevents line drainage between pump cycles. For cyclic lubrication systems only. Not compatible with continuous-flow pumps.
Technical Specifications
| Type Designation | FTC-1 (Tee Type C) |
| Flow Rate | Medium |
| Inlet | 1/8 NPT (inline tee) |
| Outlet Thread | 1/8 Pipe Thread |
| Body O.D. | 15/32" |
| Material | Brass |
Key Features
- Compact 15/32" O.D. body — fits where FTA/FTB will not
- 1/8 pipe thread outlet to bearing
- Inline tee taps into lubrication supply line
- Integrated 5 lb check valve prevents back-drainage
Common Applications
- Compact and light-duty machine tools
- Space-constrained bearing locations
- Installations where FTA body size is too large
- Small CNC machines and precision equipment
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B1099 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Tee Type |
Flow Rate: |
Medium |
