Description

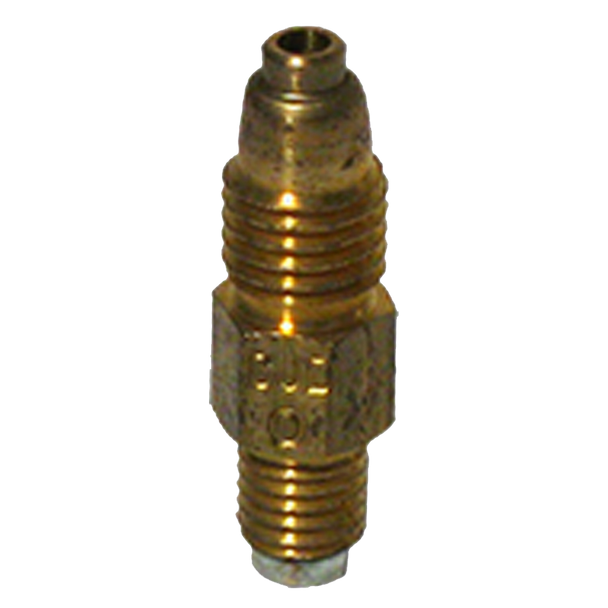

Bijur Delimon – Control Unit CJD-2: Fast Flow, Junction Type D
L. Dewitt's SKU #: B7170 | Mfr Part #: B7170The Bijur Delimon B7170 Control Unit (Type CJD-2) is an oil proportioning device for continuous-flow lubrication systems. The CJD is a slim-profile junction control unit machined for thinner junctions with closer hole spacing, calibrated to the "Fast" output rate and used where a standard CJB body will not fit.
Calibrated Fast Output
As a CJD-2 unit, this control unit delivers Fast output, designed for high-demand bearing points in continuous-flow lubrication systems. Use this rate for larger bearings, loaded journals, and higher-speed shafts requiring a generous, continuous supply to prevent heat buildup and premature wear.
Continuous System Design
For continuous-flow lubrication systems only. No internal check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CJD-2 (Junction Type D) |
| Output Rate | Fast |
| Type | Control Unit — Continuous Flow |
| Application | Slim-profile for close-spaced junctions |
| Material | Brass |
Key Features
- Slim-profile body for close-spaced junction headers
- Junction-type mounting for continuous-flow systems
- Precision orifice calibrated to designated output rate
- Stamped flow designation on body
Common Applications
- High-density continuous lubrication circuits
- Close-spaced junction headers in continuous systems
- Compact continuous-duty industrial machinery
- Systems where CJB body is too wide
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
B7170 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Fast |
