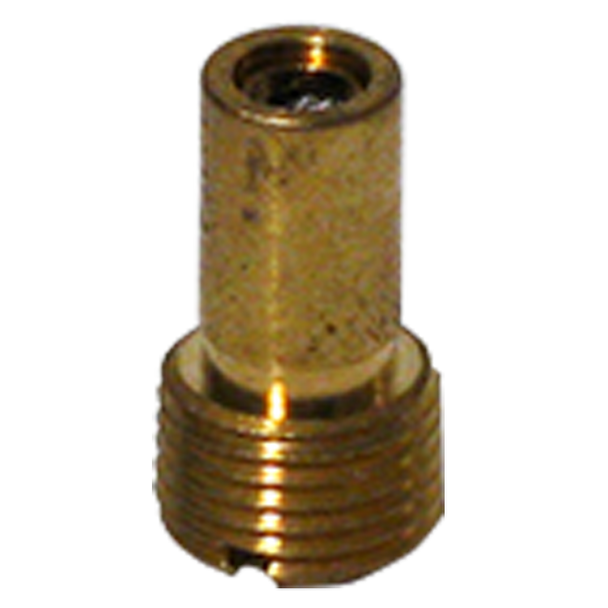

Bijur Delimon – Control Unit CKA-5/0: Extra Extra Slow Flow, Insert Type A
L. Dewitt's SKU #: B7122 | Mfr Part #: B7122The Bijur Delimon B7122 Control Unit (Type CKA-5/0) is an oil proportioning device for continuous-flow lubrication systems. The CKA is an insert-type control unit that threads into a tapped hole mating with a drilled internal oil passage — no external inlet tubing required. It delivers "Extra Extra Slow" output via its outlet to the bearing.
Calibrated Extra Extra Slow Output
As a CKA-5/0 unit, this control unit is calibrated to the Extra Extra Slow output rate — the minimum end of the C-series range. It is specified for bearing points or slides that require only the most minimal trace of lubrication in a continuously running system, where even a slight over-delivery would cause contamination or pooling.
Continuous System Design
For continuous-flow lubrication systems only. No internal check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CKA-5/0 (Insert Type A) |
| Output Rate | Extra Extra Slow |
| Type | Control Unit — Continuous Flow |
| Inlet | Insert shank (seals into drilled machine passage) |
| Outlet | 1/8 NPT Male |
| Material | Brass |
Key Features
- Insert-type design — no external inlet tubing required
- 1/8 NPT outlet connects to bearing point
- Precision orifice calibrated to designated output rate
- For machines with internal drilled oil galleries
Common Applications
- Continuous-duty machine tools with internal oil passages
- CNC spindle housings with drilled lubrication galleries
- Industrial equipment with cast-in oil channels
- Applications where external inlet tubing is impractical
