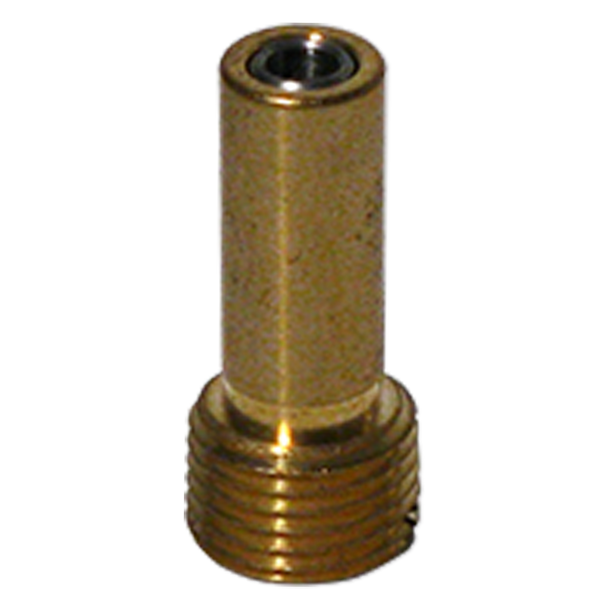

Bijur Delimon – Control Unit CKD-3: Extra Fast Flow, Insert Type D (British Standard)
L. Dewitt's SKU #: 26413-3 | Mfr Part #: 26413-3The Bijur Delimon 26413-3 Control Unit (Type CKD-3) is an oil proportioning device for continuous-flow lubrication systems on British-standard machinery. The CKD is the 1/8 BSPT equivalent of the CKA — an insert-type unit with a BSPT outlet — calibrated to "Extra Fast" output for machines with British Standard Pipe bearing ports.
Calibrated Extra Fast Output
As a CKD-3 unit, this control unit delivers Extra Fast output, engineered for the highest-demand bearing points in a continuous system. Reserved for large-diameter bearings, heavily loaded slides, and high-speed spindles where a maximum proportioned oil flow is required at all times.
Continuous System Design
For continuous-flow lubrication systems only. No internal check valve. Do not use in cyclic pump systems.
Technical Specifications
| Type Designation | CKD-3 (Insert Type D — British Standard) |
| Output Rate | Extra Fast |
| Type | Control Unit — Continuous Flow |
| Inlet | Insert shank (into drilled machine passage) |
| Outlet Thread | 1/8 BSPT Male (British Standard Pipe) |
| Material | Brass |
Key Features
- 1/8 BSPT outlet for British-standard bearing ports
- Insert-type inlet — no external inlet tubing
- Precision orifice calibrated to designated output rate
- BSP equivalent of CKA for continuous systems
Common Applications
- British and Commonwealth machine tools in continuous systems
- Import machinery with BSPT bearing ports
- Mixed NPT/BSP continuous lubrication circuits
- Applications where CKA body fits but NPT outlet is incorrect
Technical Support & System Design
Replacing an entire system or just a few points? L. Dewitt McCarter, Inc. is your authorized source for Bijur Delimon technical specifications and replacement parts.
Contact Our Technical TeamAdditional Information
Bijur Part Number: |
26413-3 |
Unit Type: |
Control Unit |
Type, Location & Mating Parts: |
Insert Type |
Flow Rate: |
Extra Fast |
