Description

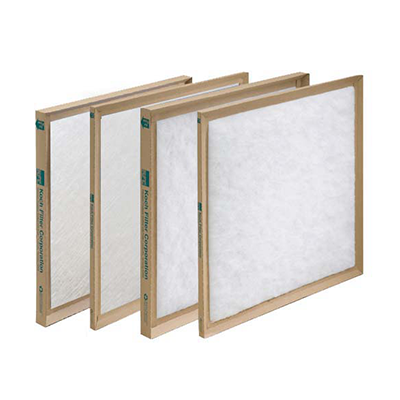

Koch Filter C&I Disp Glass 16x22.25x1 MERV 4 Air Filter
L. Dewitt's SKU #: 274-160-222 | Mfr Part #: 274-160-222
Product Overview
Standard C&I Disposables are constructed with high grade progressively dense glass fibers. The air entry side is composed of open coarse fibers, while the air exit side is made up of tighter fibers. This dual density media configuration allows for proper depth loading and full utilization of the filter media. Each fiber is coated with a non-migrating adhesive to enhance filter performance. The Koch C&I Disposable utilizes a one-piece moisture-resistant craft board frame for strength and ease of installation.
The interlocking miter corner of the Koch C&I filter provides extra strength and durability. No extra metal support is needed making the filter more environmentally friendly. A thermoplastic sealant is used to bond the filter media to the frame on both the upstream and downstream sides of the filter. This bond eliminates any air bypass and helps provide rigidity to the filter.
- Economy disposable fiberglass panel filter
- Moisture-resistant craft board frame
- 65�80% average dust spot efficiency
- Available in 1" and 2" depths in standard sizes
- Made in USA by Koch Filter Corporation
Contact L. Dewitt McCarter with your filter size, MERV requirement, and system type.
Specifications
| Brand | Koch Filter Corporation |
| Part Number | 274-160-222 |
| Filter Size | 16" x 22.25" x 1" |
| Filter Depth | 1" |
| MERV Rating | MERV 4 |
| Media Type | Fiberglass |
| Application | Commercial & Residential HVAC, General Ventilation |
| Carton Qty | 12 filters/carton |
| Approx. Weight | 1 lbs |
| Country of Origin | USA |
Additional Information
Filter Brand: |
Koch Filter |
Manufacturer: |
Koch Filter Corporation |
Product Family: |
Disposable Panel Filters |
Product Series: |
Commercial & Industrial Disposable |
Filter Type: |
Disposable panel filter |
Nominal Size: |
16x22.25x1 |
Exact Size Flag: |
Nominal size listed |
Filter Width: |
16 |
Filter Height: |
22.25 |
Filter Depth: |
1 |
MERV Rating: |
MERV 4 |
Efficiency Rating: |
MERV 4 |
Media Type: |
Fiberglass media |
Frame Material: |
Paperboard frame |
Construction: |
Disposable panel filter construction |
Application: |
Economy HVAC prefilter and equipment protection |
Use Case: |
Replacement air filter for HVAC systems, air handlers, paint booths, intake systems, and filtration equipment as applicable |
Replacement Type: |
Replacement filter element |
Approx. Dimension Basis: |
Estimated square equivalent from SKU face-area range 160-222 sq in |
Approx. Weight Basis: |
General Koch filter estimate based on face area, depth, and filter construction |
Dimension Confidence: |
Medium |
Weight Confidence: |
Approximate - Koch datasheets/product family support construction type but not per-SKU shipping weight |
Dimension Source: |
Koch product name, SKU coding, category, and supplied Koch datasheet family data |
Weight Source: |
Estimated from parsed dimensions plus Koch filter family construction/media type |
