Insize ISP-Z3015 – Profile Projector

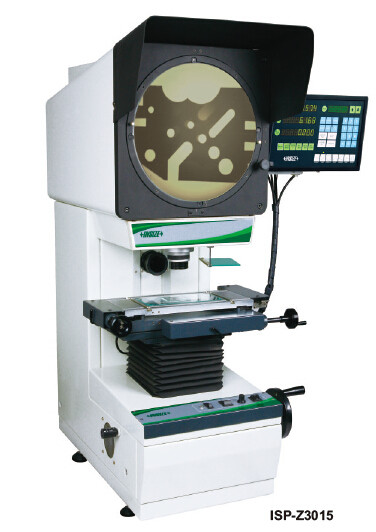

L. Dewitt's SKU #: ISP-Z3015 | Mfr Part #: ISP-Z3015Insize ISP-Z3015 is a profile projector supplied with a 10X lens, with 20X, 50X and 100X lenses available. It projects an enlarged silhouette of small parts onto the screen so outlines, angles and radii can be measured or compared against an overlay chart.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Lenses ISP-Z3015-LENS20X, ISP-Z3015-LENS50X, ISP-Z3015-LENS100X | Choose yours |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- 10X lens included; 20X, 50X and 100X lenses optional
- Lens view field: 1.18IN (10X), .59IN (20X), .24IN (50X), .12IN (100X) diameter
- Lens working distance: 3.06IN (10X), 1.74IN (20X), 1.51IN (50X), 1.00IN (100X)
Technical Specifications
| Part Number | ISP-Z3015 |
| Brand | Insize |
| Manufacturer Part Number | ISP-Z3015 |
| Product Type | Profile Projector |
| Lens Included | 10X |
| Optional Lenses | 20X, 50X, 100X |
| View Field (10X) | 1.18IN DIA |
| Working Distance (10X) | 3.06IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 345.03 lb |
| Package Dimensions | 38.98IN L x 30.31IN W x 49.8IN H |
| UPC/EAN | 6928640322501 |
| Sold As | 1 Each |
What you'll also need
- Lenses ISP-Z3015-LENS20X, ISP-Z3015-LENS50X, ISP-Z3015-LENS100X

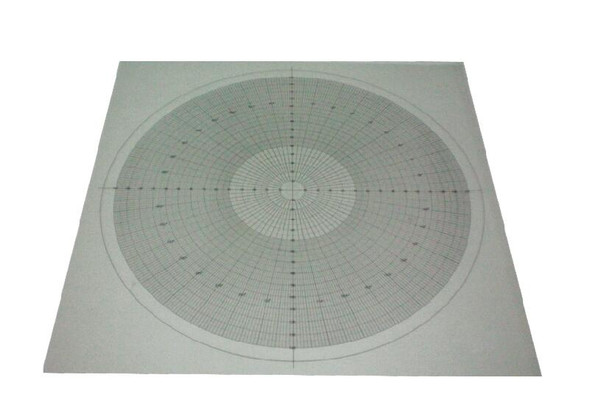

- Overlay chart ISP-Z3015-CHART, rotary table ISP-Z3015-TABLE, V-block ISP-Z3015-VBLOCK, holder ISP-Z3015-HOLDER, swivel center support ISP-Z3015-SUPPORT
Other sizes & versions in this series
- ISP-A1000E – 12IN DIA, with Edge Detector
- ISP-A5000E – 12IN DIA, with Edge Detector
- ISP-AZ3020 – 12IN DIA, Without Edge Detector
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and part size, the features you need to measure and the magnification — we reply the same day.
