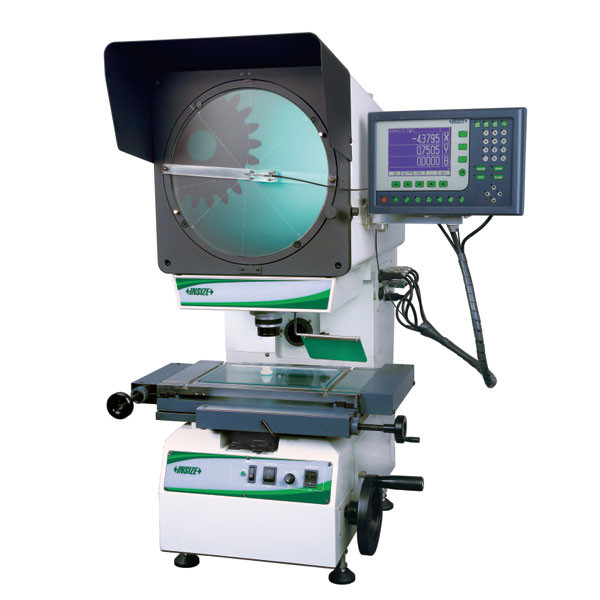

Insize ISP-A5000E – Profile Projector with Edge Detector, 12IN DIA
L. Dewitt's SKU #: ISP-A5000E | Mfr Part #: ISP-A5000EInsize ISP-A5000E is a profile projector with a 12IN diameter screen, edge detector included, with magnification accuracy ±0.08%. It projects an enlarged silhouette of the part onto the screen so outlines, angles and radii can be measured or compared against an overlay chart.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Lenses ISP-A5000-LENS20X, ISP-A5000-LENS50X, ISP-A5000-LENS100X | Choose yours |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Screen diameter 12IN
- Edge detector included
- Magnification accuracy ±0.08%
- Focus by raising and lowering the projector head; the stage does not move up and down
- Maximum workpiece weight 50kg
Technical Specifications
| Part Number | ISP-A5000E |
| Brand | Insize |
| Manufacturer Part Number | ISP-A5000E |
| Product Type | Profile Projector with Edge Detector |
| Screen Diameter | 12IN |
| Edge Detector | Included |
| Magnification Accuracy | ±0.08% |
| Focusing | Projector head moves; stage fixed in height |
| Max Workpiece Weight | 50kg |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 403.45 lb |
| Package Dimensions | 37.01IN L x 27.95IN W x 51.18IN H |
| UPC/EAN | 6928640339554 |
| Sold As | 1 Each |
What you'll also need
- Lenses ISP-A5000-LENS20X, ISP-A5000-LENS50X, ISP-A5000-LENS100X
- Overlay chart ISP-A5000-CHART, printer ISP-A5000-PRINTER, calibration scale ISP-A5000-RULE
Choosing between options
- Standard 12IN projector with edge detector: ISP-A1000E.
Other sizes & versions in this series
- ISP-A1000E – 12IN DIA, with Edge Detector
- ISP-AZ3020 – 12IN DIA, Without Edge Detector
