Description

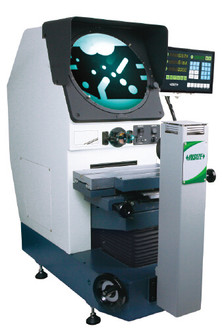

Insize ISP-W3020 – Horizontal Profile Projector without Edge Detector, 12IN DIA
L. Dewitt's SKU #: ISP-W3020 | Mfr Part #: ISP-W3020Insize ISP-W3020 is a horizontal profile projector with a 12IN diameter screen, no edge detector, with magnification accuracy ±0.08%. It projects an enlarged silhouette of the part onto the screen so outlines, angles and radii can be measured or compared against an overlay chart.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Screen diameter 12IN
- Horizontal type
- Edge detector not included
- Magnification accuracy ±0.08%
Technical Specifications
| Part Number | ISP-W3020 |
| Brand | Insize |
| Manufacturer Part Number | ISP-W3020 |
| Product Type | Horizontal Profile Projector without Edge Detector |
| Screen Diameter | 12IN |
| Type | Horizontal |
| Edge Detector | Not included |
| Magnification Accuracy | ±0.08% |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 485.02 lb |
| Package Dimensions | 51.97IN L x 29.92IN W x 49.21IN H |
| UPC/EAN | 6928640322754 |
| Sold As | 1 Each |
Choosing between options
- Need automatic edge detection? ISP-A3000E is the 12IN horizontal profile projector with edge detector.
- Larger screen: ISP-W4025 (16IN, horizontal).
Other sizes & versions in this series
- ISP-A3000E – 12IN DIA, with Edge Detector
- ISP-A7000E – 16IN DIA, with Edge Detector
- ISP-W4025 – 16IN DIA, Without Edge Detector
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and part size, the features you need to measure and the magnification — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISP-W3020 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
B |
EAN: |
6928640322754 |
Package Weight: |
485.02 lb |
Package Length: |
51.97 in |
Package Width: |
29.92 in |
Package Height: |
49.21 in |
Feature 1: |
Edge detector is not included |
Feature 2: |
Magnification accuracy ±0.08% |
