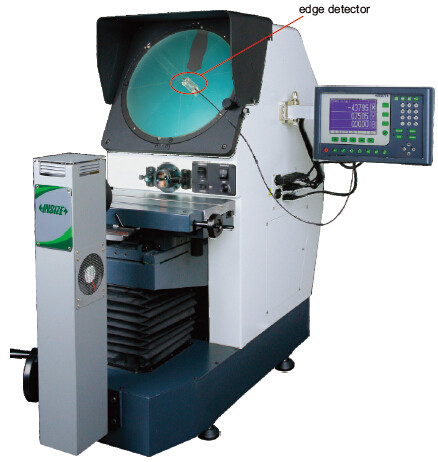

Insize ISP-A1000E – Profile Projector with Edge Detector, 12IN DIA
L. Dewitt's SKU #: ISP-A1000E | Mfr Part #: ISP-A1000EInsize ISP-A1000E is a profile projector with a 12IN diameter screen, edge detector included, with magnification accuracy ±0.08%. It projects an enlarged silhouette of the part onto the screen so outlines, angles and radii can be measured or compared against an overlay chart.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
| Printer ISP-A1000-PRINTER (only for ISP-A1000E) | Printer for ISP-A1000E | Add to cart |
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Screen diameter 12IN
- Edge detector included
- Magnification accuracy ±0.08%
Technical Specifications
| Part Number | ISP-A1000E |
| Brand | Insize |
| Manufacturer Part Number | ISP-A1000E |
| Product Type | Profile Projector with Edge Detector |
| Screen Diameter | 12IN |
| Edge Detector | Included |
| Magnification Accuracy | ±0.08% |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 374.79 lb |
| Package Dimensions | 37.8IN L x 27.95IN W x 51.18IN H |
| UPC/EAN | 6928640339400 |
| Sold As | 1 Each |
What you'll also need
- Printer ISP-A1000-PRINTER (only for ISP-A1000E)
- V-block with clamp ISP-A1000-VBLOCK
Choosing between options
- Need the stage to stay put while focusing, for heavier parts? ISP-A5000E is a 12IN projector with edge detector that focuses by moving the projector head (max workpiece 50kg).
- No edge detector needed: ISP-AZ3020 (12IN).
Other sizes & versions in this series
- ISP-A5000E – Maximum workpiece weight 50kgs
- ISP-AZ3020 – 12IN DIA, Without Edge Detector
- ISP-Z3015 – Lens view field 1.18INDIA, .59INDIA,.24INDIA,.12INDIA; Lens working distance 3.06IN, 1.74IN, 1.51IN, 1.00IN
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and part size, the features you need to measure and the magnification — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISP-A1000E |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
B |
EAN: |
6928640339400 |
Package Weight: |
374.79 lb |
Package Length: |
37.8 in |
Package Width: |
27.95 in |
Package Height: |
51.18 in |
Feature 1: |
Edge detector is included |
Feature 2: |
Magnification accuracy ±0.08% |
