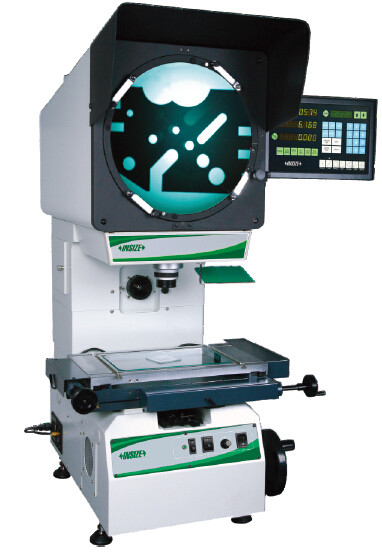

Insize ISP-AZ3020 – Profile Projector without Edge Detector, 12IN DIA
L. Dewitt's SKU #: ISP-AZ3020 | Mfr Part #: ISP-AZ3020Insize ISP-AZ3020 is a profile projector with a 12IN diameter screen, no edge detector, with magnification accuracy ±0.08%. It projects an enlarged silhouette of the part onto the screen so outlines, angles and radii can be measured or compared against an overlay chart.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Screen diameter 12IN
- Edge detector not included
- Magnification accuracy ±0.08%
Technical Specifications
| Part Number | ISP-AZ3020 |
| Brand | Insize |
| Manufacturer Part Number | ISP-AZ3020 |
| Product Type | Profile Projector without Edge Detector |
| Screen Diameter | 12IN |
| Edge Detector | Not included |
| Magnification Accuracy | ±0.08% |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 380.3 lb |
| Package Dimensions | 38.98IN L x 30.31IN W x 49.8IN H |
| UPC/EAN | 6928640322655 |
| Sold As | 1 Each |
Choosing between options
- Need automatic edge detection? ISP-A1000E is a 12IN profile projector with edge detector.
Other sizes & versions in this series
- ISP-A1000E – 12IN DIA, with Edge Detector
- ISP-A5000E – 12IN DIA, with Edge Detector
- ISP-Z3015 – Lens view field 1.18INDIA, .59INDIA,.24INDIA,.12INDIA; Lens working distance 3.06IN, 1.74IN, 1.51IN, 1.00IN
