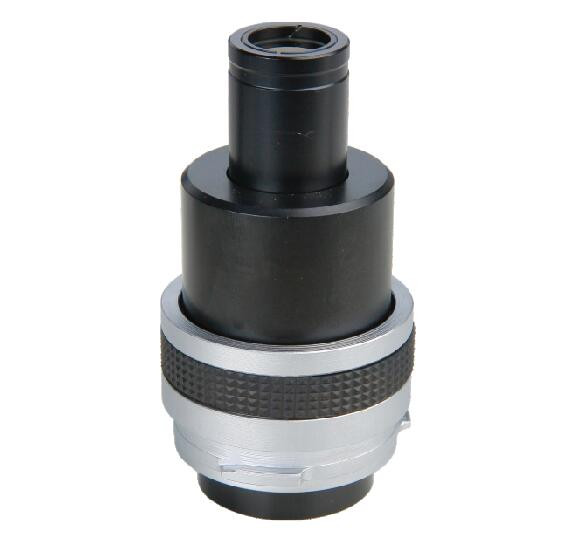

Insize ISP-Z3015-LENS20X – 20X Lens with Half-Reflection and Oblique Illuminator Mirrors
L. Dewitt's SKU #: ISP-Z3015-LENS20X | Mfr Part #: ISP-Z3015-LENS20XInsize ISP-Z3015-LENS20X is a 20X projection lens with half-reflection mirror and oblique illuminator mirror, an optional lens for the Insize ISP-Z3015 profile projector for higher magnification of small features.
Build your kit – save 5%
Buy this accessory with the tool it fits in the same order and 5% comes off both automatically in your cart.
| Profile Projector ISP-Z3015 | Profile Projector | Add to cart |
Not sure which tool it fits? Send us this part number — we confirm the fit and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Magnification 20X
- With half-reflection mirror and oblique illuminator mirror
Technical Specifications
| Part Number | ISP-Z3015-LENS20X |
| Brand | Insize |
| Manufacturer Part Number | ISP-Z3015-LENS20X |
| Product Type | 20X Lens with Half-Reflection and Oblique Illuminator Mirrors |
| Magnification | 20X |
| Mirrors | Half-reflection mirror and oblique illuminator mirror |
| For Use With | ISP-Z3015 |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 2.36 lb |
| Package Dimensions | 10.43IN L x 7.28IN W x 4.13IN H |
| UPC/EAN | 6928640322532 |
| Sold As | 1 Each |
Choosing between options
- On the ISP-Z3015 the 20X lens has a .59IN view field and 1.74IN working distance; the 10X lens supplied with ISP-Z3015 has 1.18IN and 3.06IN.
- Other optional lenses: ISP-Z3015-LENS50X, ISP-Z3015-LENS100X.
