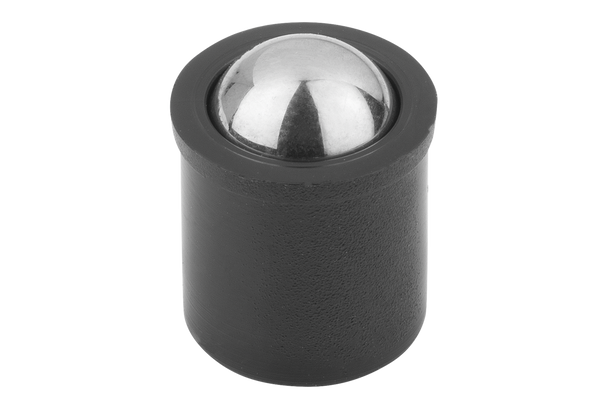

Kipp - Spring Plunger (K0334.208): Smooth Plastic Body, POM Ball
L. Dewitt's SKU #: K0334.208 | Mfr Part #: K0334.208The Kipp K0334.208 Spring Plunger is a smooth-body positioning component designed for quick indexing and fixing where a threaded body is not required. With a thermoplastic body and a POM ball, this plunger offers a lightweight, reliable solution for machine construction, commercial equipment, and general industrial assemblies. The POM ball helps reduce marking on contact surfaces and offers a quieter engagement in light-duty positioning applications.
Press-Fit Installation
The smooth plastic sleeve is designed for simple press-fit installation into receiving holes. This avoids the need for threading and makes the K0334 series an efficient choice for high-volume assembly, compact housings, and lightweight positioning tasks.
Reliable Materials
Combining a thermoplastic body with a stainless steel spring and POM ball, this version is well suited for applications that benefit from lower surface marring and smooth engagement.
Technical Specifications
| Diameter (D) | 8 mm |
| Ball Diameter (D1) | 6.5 mm |
| Outside Diameter (D2) | 8.5 mm |
| Projection / Travel (H) | 1.8 mm |
| Length (L) | 9 mm |
| Length (L1) | 1 mm |
| Spring Force (Start / F1) | 6 N |
| Spring Force (End / F2) | 12 N |
Key Features
- Gentler Contact: POM ball helps reduce marking on mating surfaces.
- Fast Installation: Smooth body supports simple press-fit assembly.
- Compact Design: Suitable for tight housings and light-duty mechanisms.
- Consistent Positioning: Provides repeatable indexing and detent action.
Primary Uses
- Adjustable fixture positioning
- Light machine and enclosure indexing
- Sliding detents and locating points
- Consumer and commercial product mechanisms
Need a Different Size or Material?
L. Dewitt McCarter, Inc. stocks the full Kipp spring plunger range, including additional sizes and material options across the K0334 family.
