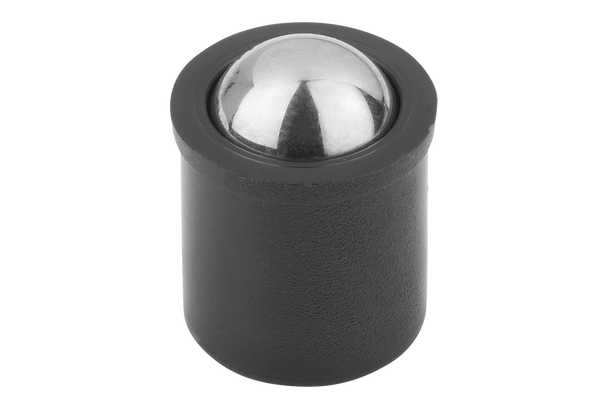

Kipp - Spring Plunger (K0334.05): Smooth Plastic Body, Stainless Steel Ball
L. Dewitt's SKU #: K0334.05 | Mfr Part #: K0334.05The Kipp K0334.05 Spring Plunger is a smooth-body positioning component designed for quick indexing and fixing where a threaded body is not required. With a thermoplastic body and a stainless steel ball, this plunger offers a lightweight, reliable solution for machine construction, commercial equipment, and general industrial assemblies. The stainless steel ball provides a durable contact point with dependable repeatability in fixtures, housings, and machine assemblies.
Press-Fit Installation
The smooth plastic sleeve is designed for simple press-fit installation into receiving holes. This avoids the need for threading and makes the K0334 series an efficient choice for high-volume assembly, compact housings, and lightweight positioning tasks.
Reliable Materials
Combining a thermoplastic body with a stainless steel spring and stainless steel ball, this unit is engineered for smooth operation, corrosion resistance, and repeatable positioning.
Technical Specifications
| Diameter (D) | 5 mm |
| Ball Diameter (D1) | 4 mm |
| Outside Diameter (D2) | 5.6 mm |
| Projection / Travel (H) | 1 mm |
| Length (L) | 6 mm |
| Length (L1) | 1 mm |
| Spring Force (Start / F1) | 4 N |
| Spring Force (End / F2) | 7 N |
Key Features
- Quick Indexing: Facilitates rapid positioning and fixing of moving components.
- Corrosion Resistant: Stainless steel internals and plastic body perform well in humid environments.
- Compact Footprint: Small body size integrates easily into tight assemblies.
- Repeatable Force: Delivers consistent spring action for dependable engagement.
Primary Uses
- Adjustable fixture positioning
- Light machine and enclosure indexing
- Sliding detents and locating points
- Consumer and commercial product mechanisms
Need a Different Size or Material?
L. Dewitt McCarter, Inc. stocks the full Kipp spring plunger range, including additional sizes and material options across the K0334 family.
