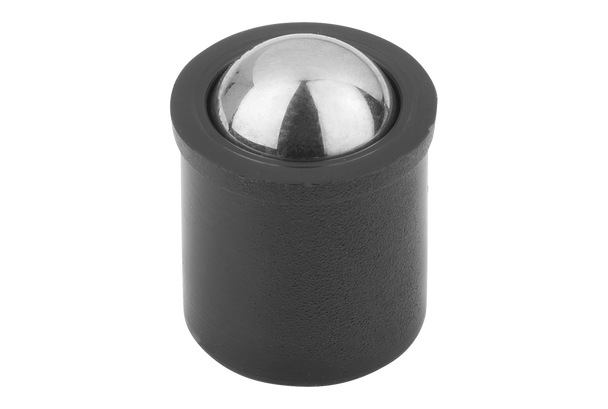

Kipp - Spring Plunger (K0334.04): Smooth Plastic Body, Stainless Ball
L. Dewitt's SKU #: K0334.04 | Mfr Part #: K0334.04The Kipp K0334.04 Spring Plunger is a "smooth version" positioning component designed for quick indexing and fixating where a threaded body is not required. With a thermoplastic body and a stainless steel ball, this plunger offers a lightweight, corrosion-resistant solution for light-duty industrial and commercial applications.
Press-Fit Installation
The smooth plastic sleeve is designed for simple press-fit installation into receiving holes. This eliminates the need for tapping threads, making it an efficient choice for high-volume assembly in machine construction, trade, and domestic sectors.
Reliable Materials
Combining a POM (thermoplastic) body with a stainless steel ball and spring, this unit is engineered for smooth operation and durability. It provides a consistent spring force for repeatable positioning without the risk of seizing or significant wear on contact surfaces.
Technical Specifications
| Diameter (D) | 4 mm |
| Length (L) | 5 mm |
| Ball Diameter (D1) | 3 mm |
| Travel (S) | 0.8 mm |
| Spring Force (Start) | 3 N |
| Spring Force (End) | 7 N |
Key Features
- Quick Indexing: Facilitates rapid positioning and fixing of moving components.
- Corrosion Resistant: Stainless steel internals and plastic body ideal for humid environments.
- Compact Footprint: 4mm diameter allows for integration into very tight assemblies.
- Universal Application: Suitable for machine plant construction, trade, and domestic use.
Primary Uses
- Electronic Component Housing Latches
- Small Sliding Door Detents
- Adjustable Fixture Positioning
- Consumer Product Mechanisms
Need a Different Size or Material?
L. Dewitt McCarter, Inc. stocks the full Kipp spring plunger range, including threaded steel and full stainless steel versions.
