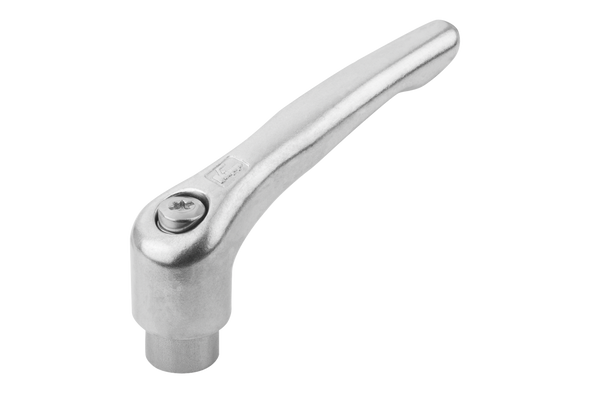

Kipp K0124 Adjustable Handle — K0124.9310
Size 3 · M10 Internal Thread · Electropolished Stainless Steel · 80mm Handle Length · With Protective Cap
The Kipp K0124.9310 is a Size 3 adjustable handle with protective cap on the pivot mechanism machined from investment cast stainless steel 1.4308 with a electropolished finish and M10 internal thread. The integrated 22-tooth ratchet mechanism allows the handle to be repositioned through a full 360° without loosening the fastener — simply lift to disengage, rotate to the desired position, and release to re-engage. With a 80mm handle length and 14mm thread depth, this handle delivers reliable ergonomic clamping across machine construction, medical technology, food processing, and instrumentation applications.
Configuration Details
- Part Number: K0124.9310
- Size: Size 3
- Thread Size (X): M10 (internal)
- Thread Depth (T): 14 mm
- Handle Length (A): 80 mm
- Finish: Electropolished
- Handle Material: Investment Cast Stainless Steel 1.4308
- Hardware Material: Stainless Steel 1.4305 (bright)
- Ratchet Teeth: 22 (lift to disengage, 360° adjustable)
- Protective Cap: Included — seals pivot from dust and moisture
Technical Specifications
| Thread Size (X) | M10 |
| Thread Depth (T) | 14 mm |
| Handle Length (A) | 80 mm |
| Overall Length (A1) | 91 mm |
| Body Width (B) | 11 mm |
| Hub Diameter (D) | 16 mm |
| Flange Diameter D1 / D2 | 21 / 22 mm |
| Total Height (H) | 37 mm |
| No. of Ratchet Teeth | 22 |
| Handle Material | Investment Cast SS 1.4308 |
| Hardware Material | Stainless Steel 1.4305 |
Key Features
- Full 360° ratchet adjustment — lift to disengage, rotate, release to lock
- 22-tooth serrated ratchet for high-resolution position control
- All-stainless construction (1.4308 handle + 1.4305 hardware) — maximum corrosion resistance
- Includes protective cap on pivot — seals the ratchet mechanism against dust, moisture, and contaminants
- Internal thread — no exposed fastener hardware, clean profile
- RoHS compliant — meets all current environmental and industrial standards
- Ergonomic lever profile for comfortable single-hand operation
- Dimension H1 available in custom lengths on request
Typical Applications
- Food and beverage processing equipment — hygienic, easy-clean finish
- Pharmaceutical and chemical laboratory instruments
- Marine and offshore hardware requiring saltwater resistance
- Medical rehabilitation and surgical equipment
- Machine construction — panels, guards, and access doors
- Optical and measurement systems requiring precise position locking
- Outdoor and wash-down environments
The electropolished finish creates a micro-smooth, ultra-clean surface that resists bacterial adhesion and is easy to sanitize — a critical requirement in pharmaceutical, food processing, and medical applications. Electropolishing also enhances the natural corrosion resistance of the 1.4308 stainless steel. Custom thread sizes, special H1 lengths, and volume pricing available on request. Refer to Kipp datasheet K0124 for complete dimensional drawings. L. DeWitt McCarter, Inc. is an authorized Kipp distributor — contact us for engineering assistance or special configurations.
Additional Information
Part Number: |
K0124.9310 |
Handle Material: |
Investment Cast Stainless Steel 1.4308 |
Other Parts Material: |
Stainless Steel 1.4305 |
Finish: |
Electropolished |
Thread Type: |
Internal Thread (Metric) |
Thread Size (X): |
M10 |
Thread Depth (T): |
14mm |
Handle Length (A): |
80mm |
Overall Length (A1): |
91mm |
Body Width (B): |
11mm |
Hub Diameter (D): |
16mm |
Flange Diameter (D1): |
21mm |
Flange Diameter (D2): |
22mm |
Total Height (H): |
37mm |
Hub Projection (H1): |
10mm |
No. of Teeth: |
22 |
Protective Cap: |
Yes (included) |
