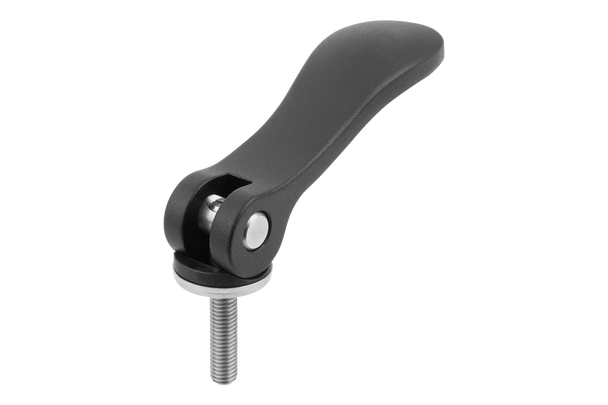

Kipp - Cam Lever: M5 External Thread, 40mm Stainless Steel Stud, Aluminum Handle
L. Dewitt's SKU #: K0005.1511105X40 | Mfr Part #: K0005.1511105X40The Kipp K0005.1511105X40 Cam Lever is a high-performance clamping solution designed for quick, torque-free securing of workpieces. Featuring a Size 1 aluminum handle with a durable powder-coated finish and a stainless steel threaded stud, this lever is engineered for reliability in environments requiring frequent adjustments and corrosion resistance.
Why Use Cam Levers
Unlike standard threaded handles, cam levers allow for instant clamping and releasing without the need for continuous rotation. This makes them ideal for machine construction, assembly fixtures, and medical technology where speed and ease of use are critical.
Material Excellence
This model utilizes a fiberglass-reinforced plastic thrust washer (PA 66 GF 35-X) to provide a smooth clamping interface. The stainless steel stud (1.4305) and hinge pin ensure long-term durability and resistance to moisture and industrial chemicals.
Technical Specifications
| Thread Size (D) | M5 |
| Thread Length (L) | 40 mm |
| Handle Length (A) | 70.4 mm |
| Clamping Force (F) | 4 kN |
| Travel (S) | 1.2 mm |
| Handle Finish | Black Powder-Coated |
Key Advantages
- Torque-Free Clamping: Secure workpieces without twisting or radial stress.
- Adjustable Positioning: Threaded stud allows for precise height/depth setting before clamping.
- Ergonomic Grip: Cast aluminum handle provides a comfortable, rigid lever for manual operation.
- Stainless Internals: Hinge pin and stud are 1.4305 stainless steel for superior life.
Common Applications
- Jig and Fixture Construction
- Packaging Machinery Adjustments
- Medical and Rehab Equipment
- Quick-Release Mounting Brackets
Technical Support & Bulk Ordering
Need this cam lever in ruby red or a different thread length? L. Dewitt McCarter, Inc. provides full access to the KIPP catalog for your assembly needs.
Contact Our Specialists
