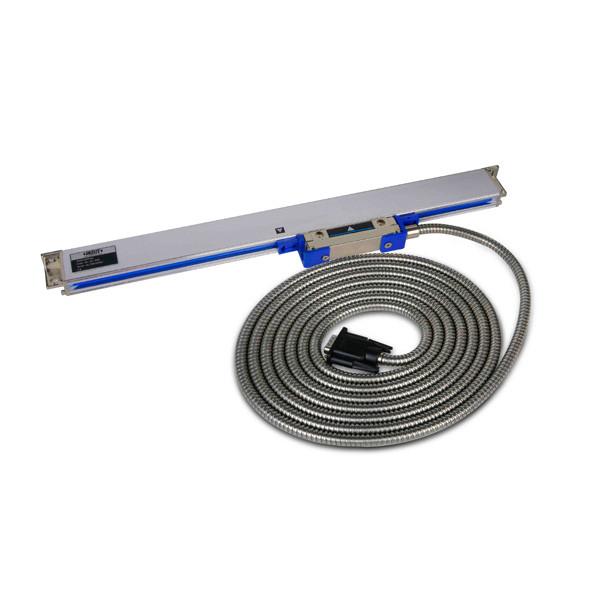

Insize ISL-A1-900 – Linear Scale, 36IN/900MM
L. Dewitt's SKU #: ISL-A1-900 | Mfr Part #: ISL-A1-900Insize ISL-A1-900 is a 36IN/900MM linear scale with .00005IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.
Key Features
- Effective length 36IN/900MM
- Resolution .00005IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 164FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 140IN (for 2-38IN scales)
Technical Specifications
| Part Number | ISL-A1-900 |
| Brand | Insize |
| Manufacturer Part Number | ISL-A1-900 |
| Product Type | Linear Scale |
| Effective Length | 36IN / 900MM |
| Resolution | .00005IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 164FT/min |
| Grating Pitch | 787μin |
| Cable Length | 140IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 5.61 lb |
| Package Dimensions | 48.62IN L x 5.12IN W x 5.12IN H |
| UPC/EAN | 6928640321856 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Is .0002IN resolution enough? ISL-A5-900 (max response speed 295FT/min) and ISL-B5-900 (196FT/min) are the same 36IN/900MM length at .0002IN.
Other sizes & versions in this series
- ISL-A1-700 – 28IN/700MM
- ISL-A1-750 – 30IN/750MM
- ISL-A1-800 – 32IN/800MM
- ISL-A1-850 – 34IN/850MM
- ISL-A1-950 – 38IN/950MM
- ISL-A1-1000 – 40IN/1000MM
- ISL-A5-50 – 2IN/50MM
- ISL-A5-100 – 4IN/100MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and machine, axis travel and DRO model — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISL-A1-900 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
A |
EAN: |
6928640321856 |
Package Weight: |
5.61 lb |
Package Length: |
48.62 in |
Package Width: |
5.12 in |
Package Height: |
5.12 in |
Feature 1: |
Resolution .00005'. |
Feature 2: |
Max. response speed 164ft/min. |
Feature 3: |
Scale grating pitch 787μin. |
Feature 4: |
Scale reference point pitch 1.97'. |
Feature 5: |
Accuracy: ±(197+5L)μin, L is the effective length in inch. |
Feature 6: |
Cable length: 140' (L: 2-38'), 200' (L: 40-60'), 400' (L: 64-128'). |
