Description

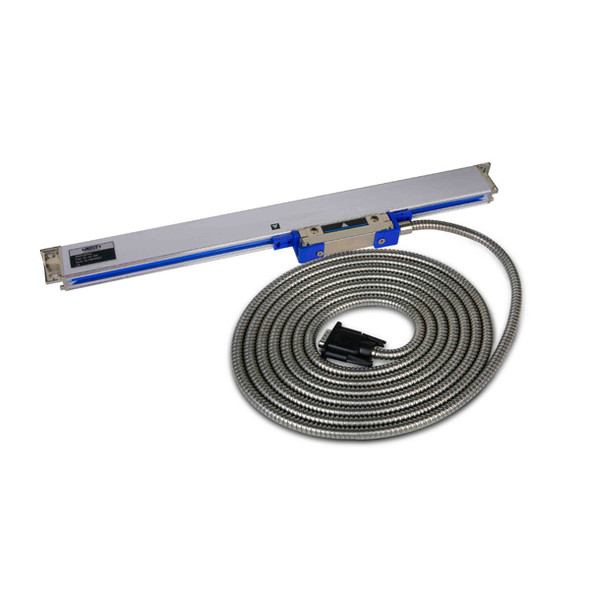

Insize ISL-A1-400 – Linear Scale, 16IN/400MM
L. Dewitt's SKU #: ISL-A1-400 | Mfr Part #: ISL-A1-400Insize ISL-A1-400 is a 16IN/400MM linear scale with .00005IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 16IN/400MM
- Resolution .00005IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 164FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 140IN (for 2-38IN scales)
Technical Specifications
| Part Number | ISL-A1-400 |
| Brand | Insize |
| Manufacturer Part Number | ISL-A1-400 |
| Product Type | Linear Scale |
| Effective Length | 16IN / 400MM |
| Resolution | .00005IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 164FT/min |
| Grating Pitch | 787μin |
| Cable Length | 140IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 4.45 lb |
| Package Dimensions | 24.02IN L x 5.91IN W x 5.91IN H |
| UPC/EAN | 6928640321757 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Is .0002IN resolution enough? ISL-A5-400 (max response speed 295FT/min) and ISL-B5-400 (196FT/min) are the same 16IN/400MM length at .0002IN.
Other sizes & versions in this series
- ISL-A1-200 – 8IN/200MM
- ISL-A1-250 – 10IN/250MM
- ISL-A1-300 – 12IN/300MM
- ISL-A1-350 – 14IN/350MM
- ISL-A1-450 – 18IN/450MM
- ISL-A1-500 – 20IN/500MM
- ISL-A1-550 – 22IN/550MM
- ISL-A1-600 – 24IN/600MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and machine, axis travel and DRO model — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISL-A1-400 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
A |
EAN: |
6928640321757 |
Package Weight: |
4.45 lb |
Package Length: |
24.02 in |
Package Width: |
5.91 in |
Package Height: |
5.91 in |
Feature 1: |
Resolution .00005'. |
Feature 2: |
Max. response speed 164ft/min. |
Feature 3: |
Scale grating pitch 787μin. |
Feature 4: |
Scale reference point pitch 1.97'. |
Feature 5: |
Accuracy: ±(197+5L)μin, L is the effective length in inch. |
Feature 6: |
Cable length: 140' (L: 2-38'), 200' (L: 40-60'), 400' (L: 64-128'). |
