Description

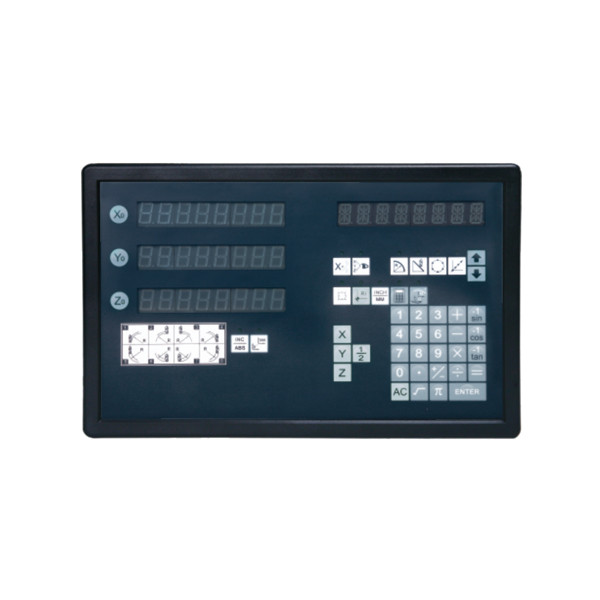

Insize ISL-DR3 – Digital Readout Counter, Three-Axis
L. Dewitt's SKU #: ISL-DR3 | Mfr Part #: ISL-DR3Insize ISL-DR3 is a three-axis counter (digital readout) with 3 scale input ports, for displaying the position of three machine axes fitted with linear scales, such as a knee mill. Resolution is selectable from .000002IN to .002IN to match the scale.
Key Features
- Three-axis application, 3 scale input ports
- Selectable resolution: .000002IN, .000005IN, .00001IN, .00002IN, .00005IN, .0001IN, .0002IN, .0005IN, .001IN, .002IN
Technical Specifications
| Part Number | ISL-DR3 |
| Brand | Insize |
| Manufacturer Part Number | ISL-DR3 |
| Product Type | Digital Readout Counter, Three-Axis |
| Axes | 3 |
| Scale Input Ports | 3 |
| Resolution Settings | .000002IN to .002IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 7.56 lb |
| Package Dimensions | 18.7IN L x 15.16IN W x 2.95IN H |
| UPC/EAN | 6928640322396 |
| Sold As | 1 Each |
What you'll also need
- Insize ISL linear scale for each axis
Choosing between options
- Only two axes? ISL-DR2 is the two-axis counter with 2 scale input ports.
Other sizes & versions in this series
- ISL-DR2 – Application two-axis; Scale input ports 2
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and number of axes, scale models and machine type — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISL-DR3 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
A |
EAN: |
6928640322396 |
Package Weight: |
7.56 lb |
Package Length: |
18.7 in |
Package Width: |
15.16 in |
Package Height: |
2.95 in |
Feature 1: |
Application three-axis. |
Feature 2: |
Scale input ports 3. |
Feature 3: |
Resolution: .000002', .000005', .00001', .00002', .00005'', .0001'', .0002'', .0005'', .001'', .002'' |
