Insize ISL-A5-100 – Linear Scale, 4IN/100MM

L. Dewitt's SKU #: ISL-A5-100  |  Mfr Part #: ISL-A5-100

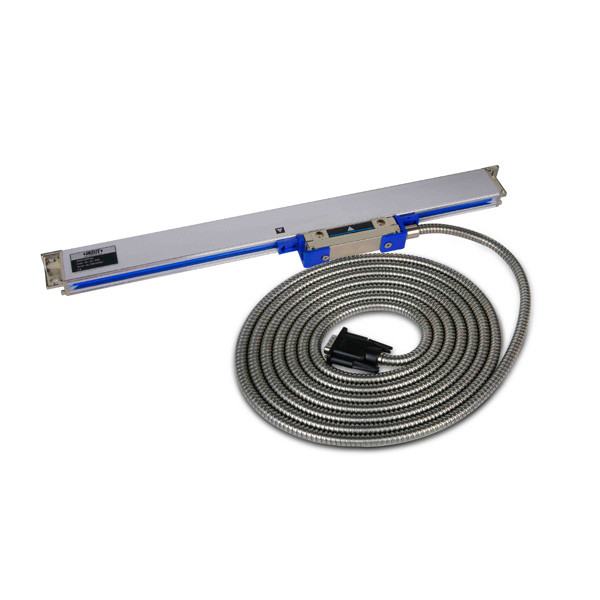

Insize ISL-A5-100 is a 4IN/100MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.

Build your kit – save 5%
Add a matching accessory to this tool in the same order and 5% comes off both automatically in your cart.
Digital readout counter: Insize ISL-DR2 (two-axis) or ISL-DR3 (three-axis)Choose yours
Send us this part number and what you measure — we match the accessories you need and quote the kit the same day.Match my kit
Kit savings need at least one tool and one accessory in the same order. Excludes QMS, LDM, TLP and UTM measuring machines.

Key Features

  • Effective length 4IN/100MM
  • Resolution .0002IN
  • Accuracy ±(197 + 5L)μin, L = effective length in inches
  • Max response speed 295FT/min
  • Grating pitch 787μin; reference point pitch 1.97IN
  • Cable length 140IN (for 2-38IN scales)

Technical Specifications

Part NumberISL-A5-100
BrandInsize
Manufacturer Part NumberISL-A5-100
Product TypeLinear Scale
Effective Length4IN / 100MM
Resolution.0002IN
Accuracy±(197 + 5L)μin
Max Response Speed295FT/min
Grating Pitch787μin
Cable Length140IN
AvailabilityShips direct from Insize; most items in stock. Ship date confirmed by email after you order.
Shipping Weight3.31 lb
Package Dimensions16.14IN L x 5.12IN W x 5.12IN H
UPC/EAN6928640321894
Sold As1 Each

What you'll also need

  • Digital readout counter: Insize ISL-DR2 (two-axis) or ISL-DR3 (three-axis)
  • Mounting hardware for your machine

Choosing between options

  • Need finer resolution? ISL-A1-100 is the same 4IN/100MM length at .00005IN resolution (max response speed 164FT/min).
  • ISL-B5-100 is the same 4IN/100MM length and .0002IN resolution with a max response speed of 196FT/min (this scale: 295FT/min).

Other sizes & versions in this series

See all 82 products in the Insize ISL series
