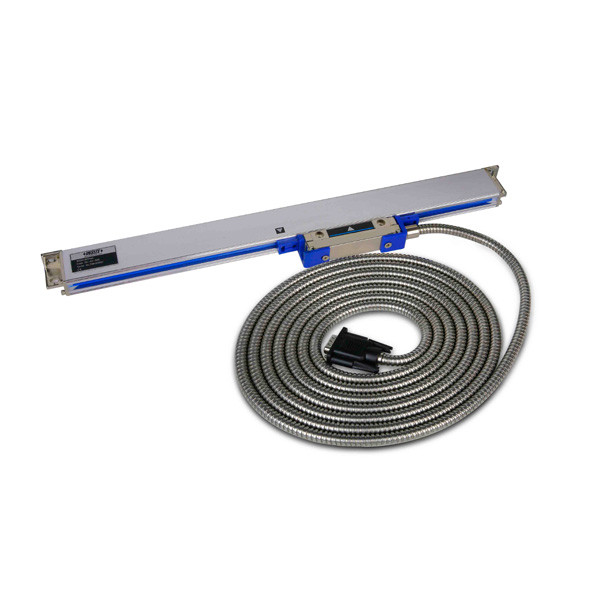

Insize ISL-B5-850 – Linear Scale, 34IN/850MM
L. Dewitt's SKU #: ISL-B5-850 | Mfr Part #: ISL-B5-850Insize ISL-B5-850 is a 34IN/850MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 34IN/850MM
- Resolution .0002IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 196FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 140IN (for 2-38IN scales)
Technical Specifications
| Part Number | ISL-B5-850 |
| Brand | Insize |
| Manufacturer Part Number | ISL-B5-850 |
| Product Type | Linear Scale |
| Effective Length | 34IN / 850MM |
| Resolution | .0002IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 196FT/min |
| Grating Pitch | 787μin |
| Cable Length | 140IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 7.9 lb |
| Package Dimensions | 48.43IN L x 4.72IN W x 6.69IN H |
| UPC/EAN | 6928640322242 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Need finer resolution? ISL-A1-850 is the same 34IN/850MM length at .00005IN resolution (max response speed 164FT/min).
- ISL-A5-850 is the same 34IN/850MM length and .0002IN resolution with a max response speed of 295FT/min (this scale: 196FT/min).
Other sizes & versions in this series
- ISL-B5-650 – 26IN/650MM
- ISL-B5-700 – 28IN/700MM
- ISL-B5-750 – 30IN/750MM
- ISL-B5-800 – 32IN/800MM
- ISL-B5-900 – 36IN/900MM
- ISL-B5-950 – 38IN/950MM
- ISL-B5-1000 – 40IN/1000MM
- ISL-B5-1100 – 44IN/1100MM
