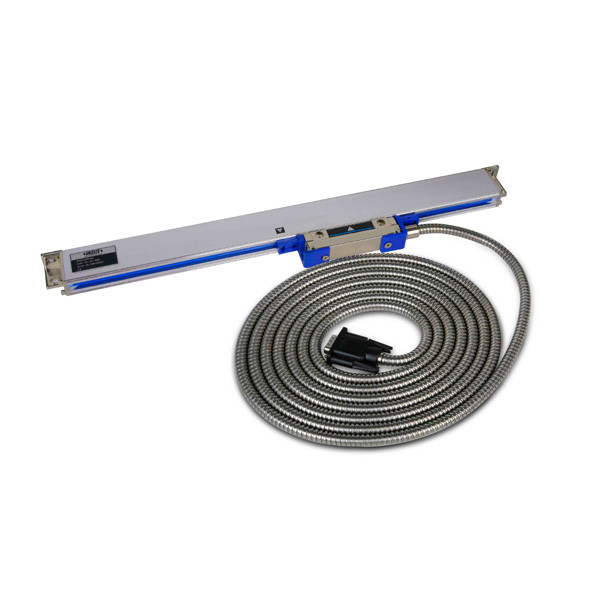

Insize ISL-B5-350 – Linear Scale, 14IN/350MM
L. Dewitt's SKU #: ISL-B5-350 | Mfr Part #: ISL-B5-350Insize ISL-B5-350 is a 14IN/350MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 14IN/350MM
- Resolution .0002IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 196FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 140IN (for 2-38IN scales)
Technical Specifications
| Part Number | ISL-B5-350 |
| Brand | Insize |
| Manufacturer Part Number | ISL-B5-350 |
| Product Type | Linear Scale |
| Effective Length | 14IN / 350MM |
| Resolution | .0002IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 196FT/min |
| Grating Pitch | 787μin |
| Cable Length | 140IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 4.54 lb |
| Package Dimensions | 24.21IN L x 5.31IN W x 4.92IN H |
| UPC/EAN | 6928640322143 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- Need finer resolution? ISL-A1-350 is the same 14IN/350MM length at .00005IN resolution (max response speed 164FT/min).
- ISL-A5-350 is the same 14IN/350MM length and .0002IN resolution with a max response speed of 295FT/min (this scale: 196FT/min).
Other sizes & versions in this series
- ISL-B5-150 – 6IN/150MM
- ISL-B5-200 – 8IN/200MM
- ISL-B5-250 – 10IN/250MM
- ISL-B5-300 – 12IN/300MM
- ISL-B5-400 – 16IN/400MM
- ISL-B5-450 – 18IN/450MM
- ISL-B5-500 – 20IN/500MM
- ISL-B5-550 – 22IN/550MM
