Insize ISL-B5-2700 – Linear Scale, 108IN/2700MM

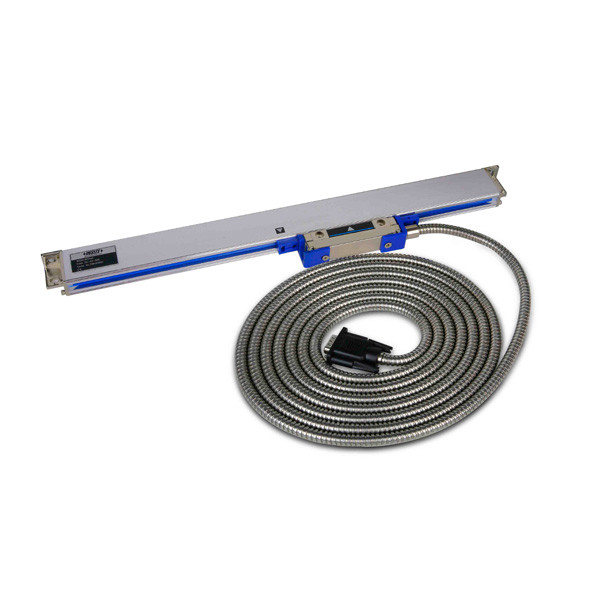

L. Dewitt's SKU #: ISL-B5-2700 | Mfr Part #: ISL-B5-2700Insize ISL-B5-2700 is a 108IN/2700MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 108IN/2700MM
- Resolution .0002IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 196FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 400IN (for 64-128IN scales)
Technical Specifications
| Part Number | ISL-B5-2700 |
| Brand | Insize |
| Manufacturer Part Number | ISL-B5-2700 |
| Product Type | Linear Scale |
| Effective Length | 108IN / 2700MM |
| Resolution | .0002IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 196FT/min |
| Grating Pitch | 787μin |
| Cable Length | 400IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 52.91 lb |
| Package Dimensions | 128.74IN L x 8.66IN W x 7.48IN H |
| UPC/EAN | 6928640373503 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- The ISL-B5 series is the one that runs past 40IN, up to 128IN effective length; the A1 and A5 series stop at 40IN.
Other sizes & versions in this series
- ISL-B5-2300 – 92IN/2300MM
- ISL-B5-2400 – 96IN/2400MM
- ISL-B5-2500 – 100IN/2500MM
- ISL-B5-2600 – 104IN/2600MM
- ISL-B5-2800 – 112IN/2800MM
- ISL-B5-2900 – 116IN/2900MM
- ISL-B5-3000 – 120IN/3000MM
- ISL-B5-3100 – 124IN/3100MM
