Description

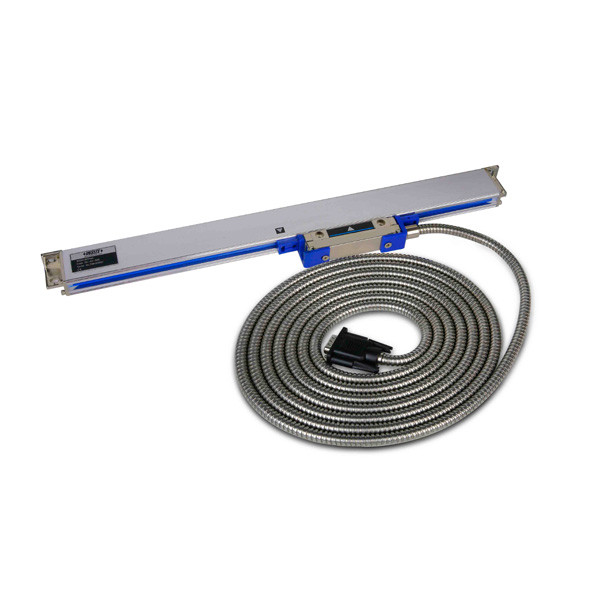

Insize ISL-B5-2000 – Linear Scale, 80IN/2000MM
L. Dewitt's SKU #: ISL-B5-2000 | Mfr Part #: ISL-B5-2000Insize ISL-B5-2000 is an 80IN/2000MM linear scale with .0002IN resolution for adding digital readout to a machine tool axis such as a mill or lathe.
Key Features
- Effective length 80IN/2000MM
- Resolution .0002IN
- Accuracy ±(197 + 5L)μin, L = effective length in inches
- Max response speed 196FT/min
- Grating pitch 787μin; reference point pitch 1.97IN
- Cable length 400IN (for 64-128IN scales)
Technical Specifications
| Part Number | ISL-B5-2000 |
| Brand | Insize |
| Manufacturer Part Number | ISL-B5-2000 |
| Product Type | Linear Scale |
| Effective Length | 80IN / 2000MM |
| Resolution | .0002IN |
| Accuracy | ±(197 + 5L)μin |
| Max Response Speed | 196FT/min |
| Grating Pitch | 787μin |
| Cable Length | 400IN |
| Availability | Ships direct from Insize; most items in stock. Ship date confirmed by email after you order. |
| Shipping Weight | 21.15 lb |
| Package Dimensions | 87.01IN L x 6.69IN W x 5.91IN H |
| UPC/EAN | 6928640322372 |
| Sold As | 1 Each |
What you'll also need
Choosing between options
- The ISL-B5 series is the one that runs past 40IN, up to 128IN effective length; the A1 and A5 series stop at 40IN.
Other sizes & versions in this series
- ISL-B5-1600 – 64IN/1600MM
- ISL-B5-1700 – 68IN/1700MM
- ISL-B5-1800 – 72IN/1800MM
- ISL-B5-1900 – 76IN/1900MM
- ISL-B5-2100 – 84IN/2100MM
- ISL-B5-2200 – 88IN/2200MM
- ISL-B5-2300 – 92IN/2300MM
- ISL-B5-2400 – 96IN/2400MM
Request a Quote
Need volume pricing or help matching the right Insize part?
Send the part number, quantity and machine, axis travel and DRO model — we reply the same day.
Contact Information
Authorized Insize distributor
📍 Nationwide shipping | Live Oak, TX
Additional Information
Brand: |
Insize |
Manufacturer Part Number: |
ISL-B5-2000 |
Product Family: |
Precision Measuring Tools |
Supplier Category Code: |
A |
EAN: |
6928640322372 |
Package Weight: |
21.15 lb |
Package Length: |
87.01 in |
Package Width: |
6.69 in |
Package Height: |
5.91 in |
Feature 1: |
Resolution .0002'. |
Feature 2: |
Max. response speed 196ft/min. |
Feature 3: |
Scale grating pitch 787μin. |
Feature 4: |
Scale reference point pitch 1.97'. |
Feature 5: |
Accuracy: ±(197+5L)μin, L is the effective length in inch. |
Feature 6: |
Cable length: 140' (L: 2-38'), 200' (L: 40-60'), 400' (L: 64-128'). |
